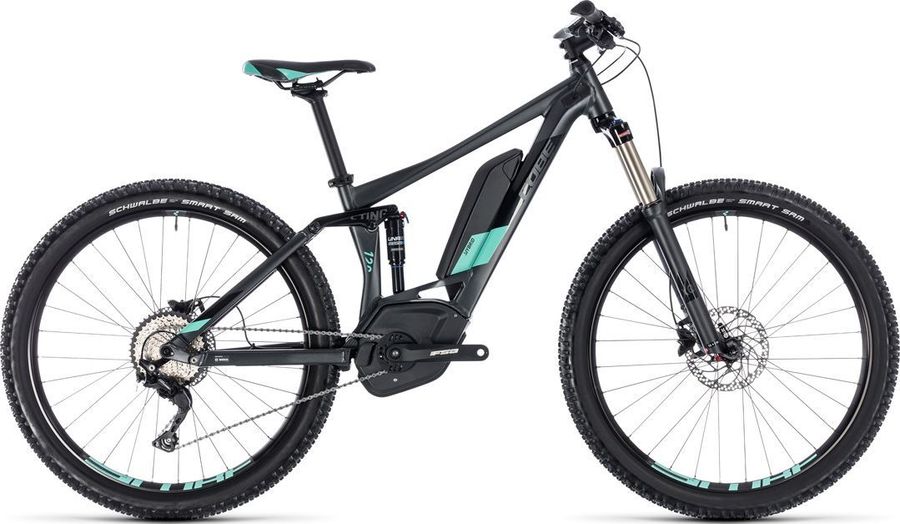

CUBE STING HYBRID 120 Race 500 27.5 2018
The CUBE STING HYBRID 120 Race 500 27.5 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
The CUBE STING HYBRID 120 Race 500 27.5 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,3 kg
Front travel
120mm
Rear travel
120mm
About the CUBE STING HYBRID 120 Race 500 27.5 2018
The CUBE STING HYBRID 120 Race 500 27.5 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 23,3 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Natural Fit Comfort
|
|---|---|
|
Remote
|
Bosch Purion
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
CUBE WS Active 1.1
|
|
Battery
|
Bosch PowerPack 500
|
|
Headset
|
FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"
|
|
Seatpost
|
CUBE Performance Post, 31.6mm
|
|
Handlebar
|
CUBE Rise Trail Bar Pro, 720mm
|
|
Brake lever
|
Shimano BR-M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA CK-745, 170mm, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano Deore SL-M6000, Rapidfire-Plus
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH
|
|---|---|
|
Rear suspension
|
SR Suntour Unair LOR8
|
|
Front suspension
|
SR Suntour XCR 34 AIR
|
|
Rims
|
CUBE EX30, 32H, Disc, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.60
|
|
Spokes
|
32 count front and rear
|
|
Rear hub
|
Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock
|
|
Front hub
|
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock
|
Geometry
| Size | 16" | 18" |
|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
|
c
Top tube length
|
567,0
|
587,0
|
|
d
Head tube length
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
|
f
Rake
|
58,0
|
58,0
|
|
g
Trail
|
78,0
|
78,0
|
|
h
Wheelbase
|
1155,0
|
1176,0
|
|
i
Chainstay length
|
468,0
|
468,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
|
k
Stack height
|
577,0
|
586,0
|
|
l
Reach
|
402,0
|
419,0
|
|
m
Standover height
|
-
|
-
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
|
y
Front center
|
688,0
|
709,0
|
