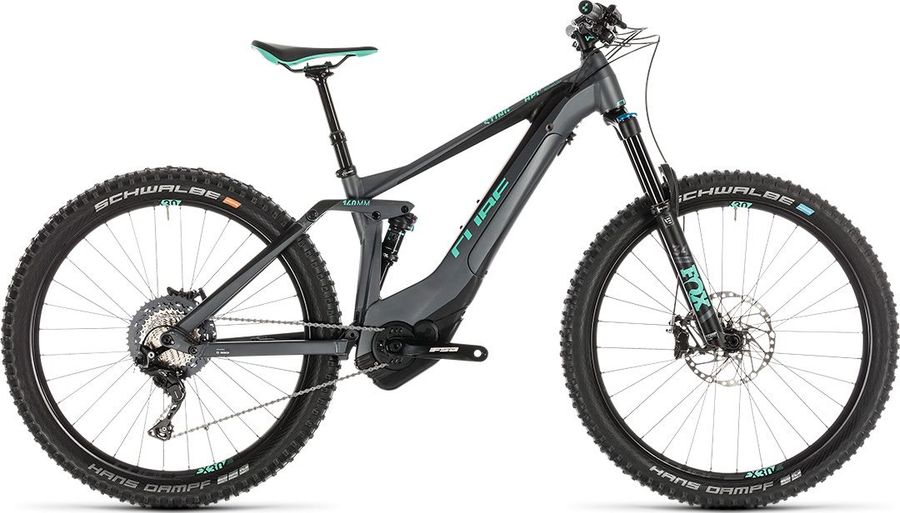

CUBE STING HYBRID 140 SL 500 27.5 2019
The CUBE STING HYBRID 140 SL 500 27.5 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
The CUBE STING HYBRID 140 SL 500 27.5 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,8 kg
Front travel
140mm
Rear travel
140mm
About the CUBE STING HYBRID 140 SL 500 27.5 2019
The CUBE STING HYBRID 140 SL 500 27.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race SL Grip 29.5, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Remote
|
Bosch Purion
|
|
Steam
|
Newmen Evolution 318.4, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Active Race WS
|
|
Battery
|
Bosch PowerTube 500
|
|
Charger
|
Bosch 4A
|
|
Headset
|
FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
|
|
Handlebar
|
Newmen Evolution 318.20, 760mm
|
|
Brakes
|
Shimano Deore XT BR-M8020
Hydraulic disc brake
4 piston
|
|
D03S Resin H03A Resin SM-RT99 RT-EM810 RT-EM910 |
|
|
Crankset
|
FSA CK-745, 15T, 170mm
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano XT SL-M8000-I, Direct Attach
|
|
Rear derailleur
|
Shimano Deore XT RD-M8000-GS
271 g
GS
11s
|
|
46T(1x11-speed) |
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
KMC X11
|
|
Frame
|
Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
|
|---|---|
|
Rear suspension
|
Fox Float DPS EVOL
|
|
Front suspension
|
Fox 34 Rhythm
|
|
Rims
|
CUBE EX30, 32H, Disc, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Hans Dampf 2.60, Addix Soft, Apex, Tubeless Easy
|
|
Rear hub
|
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
|
|
Front hub
|
Shimano XT HB-M8010-B, 15QR, Boost, Centerlock
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
420,0
|
470,0
|
520,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
577,0
|
597,0
|
617,0
|
635,0
|
|
d
Head tube length
|
120,0
|
120,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
67,3º
|
67,3º
|
67,3º
|
67,3º
|
|
f
Rake
|
43,0
|
43,0
|
44,0
|
42,0
|
|
g
Trail
|
102,0
|
102,0
|
101,0
|
103,0
|
|
h
Wheelbase
|
1170,0
|
1190,0
|
1212,0
|
1232,0
|
|
i
Chainstay length
|
480,0
|
480,0
|
480,0
|
480,0
|
|
j
Bottom bracket drop
|
15,5
|
15,5
|
15,5
|
15,5
|
|
k
Stack height
|
604,0
|
604,0
|
614,0
|
635,0
|
|
l
Reach
|
407,0
|
427,0
|
444,0
|
457,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
690,0
|
710,0
|
732,0
|
752,0
|
