CUBE STING WLS 120 Pro 2017

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,1 kg
Front travel
120mm
Rear travel
120mm

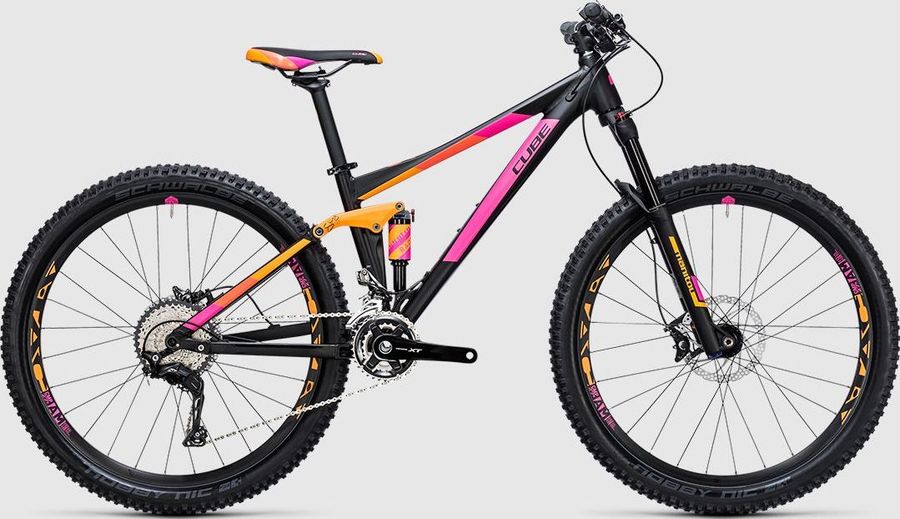

CUBE STING WLS 120 Pro 2017

About the CUBE STING WLS 120 Pro 2017

The CUBE STING WLS 120 Pro 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 13,1 kg.

Features

The CUBE STING WLS 120 Pro 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Natural Fit Race
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE WLS Active 1.1
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 31.6mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000, 34/24T, 175mm
Shifter
Shimano SLX SL-M7000-I, Direct Attach
Front derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, AXH
Rear suspension
Manitou Radium RL
Front suspension
Manitou Minute TS Air
Wheels
Rims
Answer Atac MA, 15QR / X12, Tubeless-Ready
Tires
Schwalbe Nobby Nic Kevlar, PerfL. 2,35

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
335,0
375,0
395,0
445,0
b
Seat tube angle
74,7º
74,7º
75,2º
75,2º
c
Top tube length
549,0
569,5
579,0
598,0
d
Head tube length
105,0
110,0
110,0
120,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
51,0
51,0
g
Trail
93,0
93,0
93,0
93,0
h
Wheelbase
1089,0
1110,0
1146,0
1166,0
i
Chainstay length
431,0
431,0
449,5
449,5
j
Bottom bracket drop
20,0
20,0
42,5
42,5
k
Stack height
580,0
584,0
616,0
626,0
l
Reach
395,0
414,0
422,0
438,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
332,0
332,0
y
Front center
659,0
680,0
700,0
720,0
