BikeWise

CUBE STING WLS 140 SL 27.5 2017

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
140mm
Rear travel
140mm

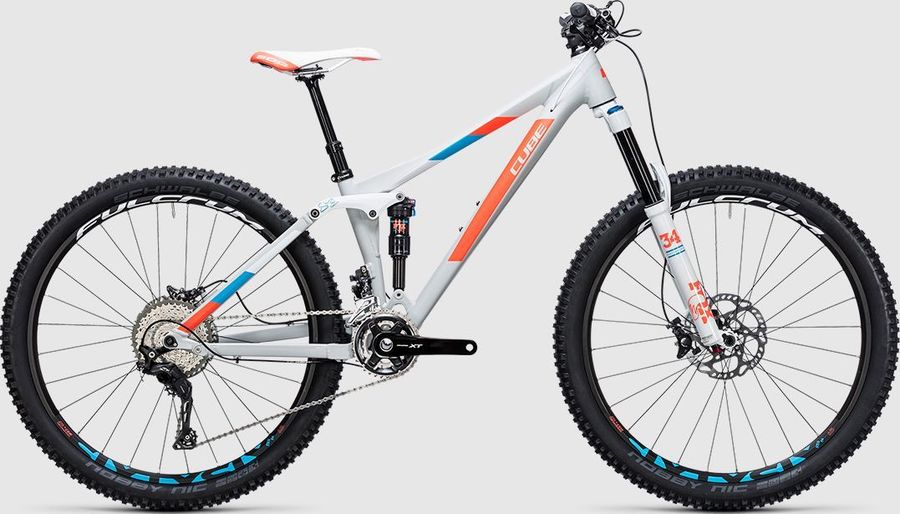

CUBE STING WLS 140 SL 27.5 2017

About the CUBE STING WLS 140 SL 27.5 2017

The CUBE STING WLS 140 SL 27.5 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,5 kg.

Features

The CUBE STING WLS 140 SL 27.5 2017 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Natural Fit Race
Components
Steam
JD Enduro ST97A 0°
Saddle
SDG Allure Steel
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 400x120mm (360x100mm for smallest frame size)
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000, 34x24T, 175mm
Shifter
Shimano XT SL-M8000-I, Direct Attach
Front derailleur
Shimano XT FD-M8025-D, Direct Mount, Down Swing
Chain
Shimano CN-HG600
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount
Rear suspension
Fox Float DPS EVOL
Front suspension
Fox 34 Float
Wheels
Rims
Fulcrum Red 66, 28/28 Spokes, 15QR/X12
Tires
Schwalbe Nobby Nic Kevlar 2.35, TrailStar, Tubeless Easy

Geometry

Size 13" 16" 18"
a
Seat tube length
350,0
360,0
400,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
551,0
571,0
591,0
d
Head tube length
105,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
44,0
44,0
45,0
g
Trail
100,0
100,0
99,0
h
Wheelbase
1112,0
1133,0
1154,0
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
15,5
15,5
15,5
k
Stack height
587,0
592,0
601,0
l
Reach
393,0
412,0
429,0
m
Standover height
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
676,0
697,0
718,0
