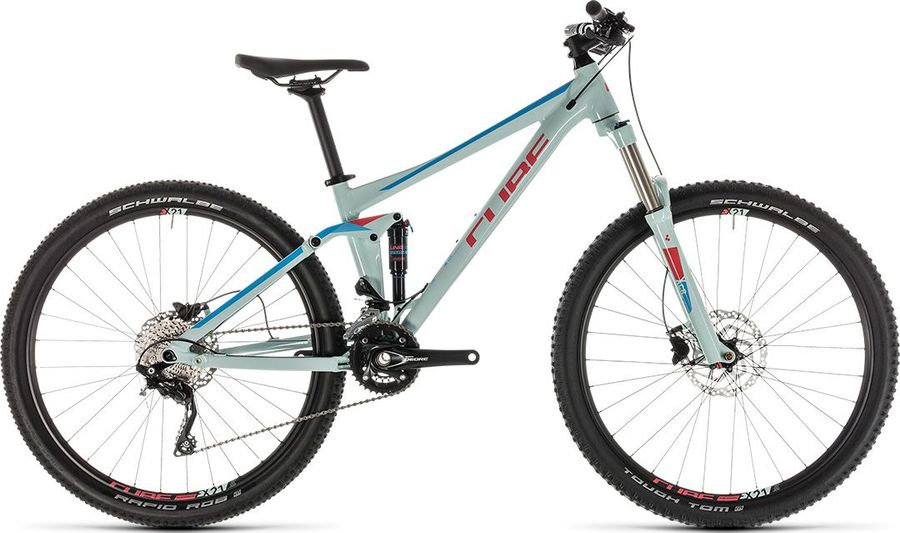

CUBE STING WS 120 Exc 2019
The CUBE STING WS 120 Exc 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
120mm
Rear travel
120mm

About the CUBE STING WS 120 Exc 2019
The CUBE STING WS 120 Exc 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 13,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
CUBE Performance Grip
|
---|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
---|---|
Saddle
|
Natural Fit Active WS
|
Headset
|
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
Seatpost
|
CUBE Performance Post, 31.6mm
|
Handlebar
|
CUBE Rise Trail Bar, 700mm
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
BL-MT200 SM-RT26* |
Crankset
|
Shimano Deore FC-M617, 36x22T, 175mm
|
---|---|
Shifter
|
Shimano Deore SL-M6000, Rapidfire-Plus
|
Front derailleur
|
Shimano Deore FD-M617-D, Direct Mount, Side Swing
|
Chain
|
KMC X10
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
Rear derailleur
|
Shimano Deore XT RD-M781
238 g
SGS
10s
|
|
Frame
|
HPA Ultralight, Advanced Hydroforming, Triple Butted, ETC 4-Link, AXH
|
---|---|
Rear suspension
|
SR Suntour Unair LOR8
|
Front suspension
|
SR Suntour XCR 32 AIR
|
Rims
|
CUBE EX21, 32H, Disc
|
---|---|
Tires
|
Schwalbe Tough Tom, Active, 2.25
|
Rear hub
|
Shimano FH-MT400, Through Axle
|
Front hub
|
Shimano HB-MT400-B, 15QR, Boost, Centerlock
|
Geometry
Size | 13" | 16" | 17" | 19" |
---|---|---|---|---|
a
Seat tube length
|
335,0
|
375,0
|
395,0
|
445,0
|
b
Seat tube angle
|
74,74º
|
74,74º
|
75,23º
|
75,23º
|
c
Top tube length
|
549,0
|
569,5
|
579,0
|
598,0
|
d
Head tube length
|
105,0
|
110,0
|
110,0
|
120,0
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
f
Rake
|
44,0
|
44,0
|
51,0
|
51,0
|
g
Trail
|
93,0
|
93,0
|
93,0
|
93,0
|
h
Wheelbase
|
1089,0
|
1110,0
|
1146,0
|
1166,0
|
i
Chainstay length
|
431,0
|
431,0
|
449,5
|
449,5
|
j
Bottom bracket drop
|
20,0
|
20,0
|
42,5
|
42,5
|
k
Stack height
|
580,0
|
584,0
|
616,0
|
626,0
|
l
Reach
|
395,0
|
414,0
|
422,0
|
438,0
|
m
Standover height
|
-
|
-
|
-
|
-
|
x
Bottom bracket height
|
335,0
|
335,0
|
332,0
|
332,0
|
y
Front center
|
659,0
|
680,0
|
700,0
|
720,0
|
