CUBE STING WS 120 PRO 2020

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
130mm
Rear travel
120mm

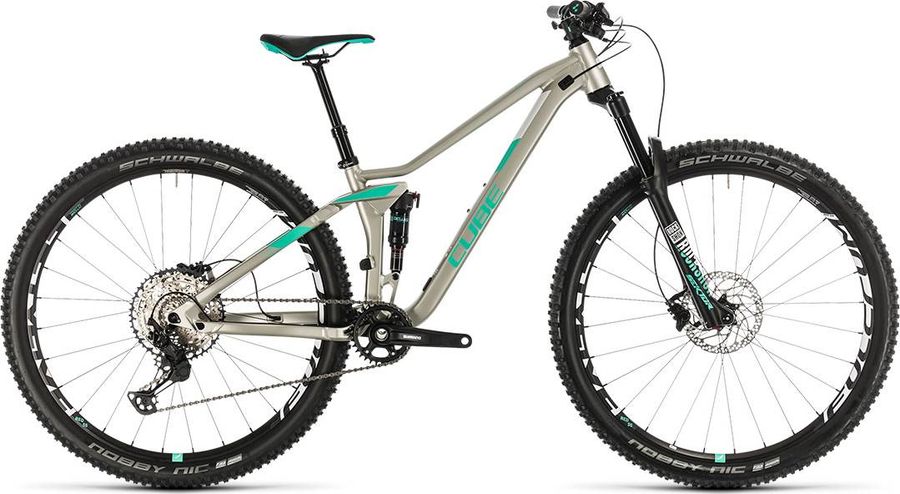

CUBE STING WS 120 PRO 2020

About the CUBE STING WS 120 PRO 2020

The CUBE STING WS 120 PRO 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,8 kg.

Features

The CUBE STING WS 120 PRO 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Venec WS
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano FC-MT610, 30T
Shifter
Shimano SLX SL-M7100
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Fulcrum Red Zone 500 Boost
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35

Geometry

Size 13" 16" 18" 20"
a
Seat tube length
340,0
370,0
420,0
470,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
538,0
561,0
581,8
605,0
d
Head tube length
100,0
100,0
103,0
113,0
e
Head tube angle
67,5º
67,0º
67,0º
67,0º
f
Rake
44,0
51,0
51,0
51,0
g
Trail
100,0
104,0
104,0
104,0
h
Wheelbase
1087,0
1136,0
1157,0
1181,0
i
Chainstay length
408,0
423,5
423,5
423,5
j
Bottom bracket drop
20,0
40,0
40,0
40,0
k
Stack height
558,3
594,0
597,0
606,0
l
Reach
396,0
411,0
431,0
451,0
m
Standover height
690,0
697,0
730,0
760,8
x
Bottom bracket height
335,0
334,0
334,0
334,0
y
Front center
680,0
715,0
736,0
760,0
