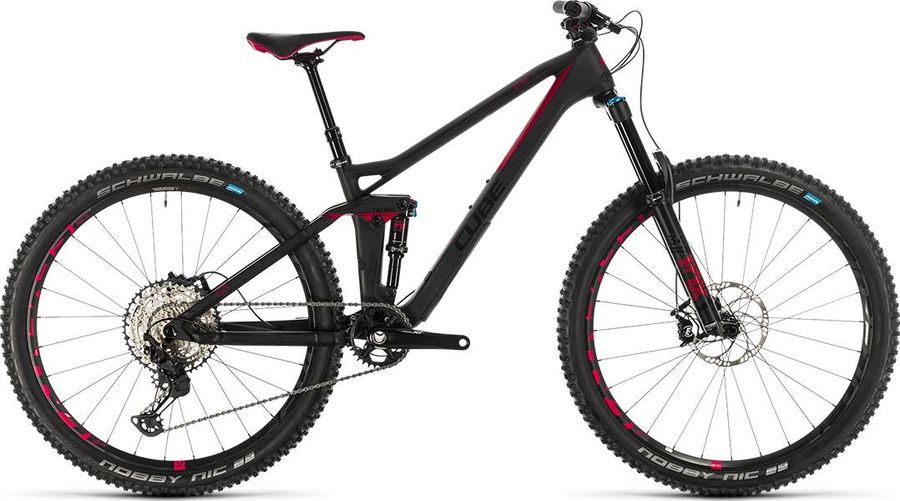

CUBE STING WS 140 HPC RACE 2020

Women's Bike

MTB Trail

Groupset

Shimano XT

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Weight

12,7 kg

Front travel

150mm

Rear travel

140mm

About the CUBE STING WS 140 HPC RACE 2020

The CUBE STING WS 140 HPC RACE 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,7 kg.

Features

The CUBE STING WS 140 HPC RACE 2020 has 2 features listed below.

Dropper seatpost More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	CUBE Race SL Grip 29.5mm, 1-Clamp

Components
Steam	Newmen Evolution SL 318.4, 31.8mm
Saddle	Natural Fit Venec WS
Headset	FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost	CUBE Dropper Post
Handlebar	Newmen Evolution 318.20, 760mm
Brakes	Magura MT Trail Custom

Drivetrain
Crankset	Shimano XT, 32T
Shifter	Shimano XT SL-M8100
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Cassette	Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 1 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M7100-12 Steel gear finish Plated Steel gear pieces 11 Type HYPERGLIDE+ Weights 10-45T: 513g 10-51T: 534g
Chain	Shimano CN-M7100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M7100 Pin link plate Gray Roller link plate SIL-TEC Type HG 12-speed

Frameset
Frame	HPC, High Performance Composite
Rear suspension	Fox Float DPS EVOL
Front suspension	Fox 34 Rhythm

Wheels
Rims	Fulcrum Red Zone 700 Boost
Tires	Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 12

Crank: 32T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,63

Average

3,21

Compared to similar bikes, the CUBE STING WS 140 HPC RACE 2020 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	13"	16"	18"	20"
a Seat tube length	350,0	370,0	420,0	470,0
b Seat tube angle	75,2º	75,2º	75,2º	75,2º
c Top tube length	547,0	569,0	592,0	615,0
d Head tube length	102,0	107,0	117,0	127,0
e Head tube angle	66,5º	66,5º	66,5º	66,5º
f Rake	44,0	44,0	44,0	44,0
g Trail	107,0	107,0	107,0	107,0
h Wheelbase	1120,0	1142,0	1166,0	1190,0
i Chainstay length	426,0	426,0	426,0	426,0
j Bottom bracket drop	15,5	15,5	15,5	15,5
k Stack height	588,0	593,0	602,0	611,0
l Reach	399,0	419,0	439,0	459,0
m Standover height	733,0	734,0	735,0	757,0
x Bottom bracket height	340,0	340,0	340,0	340,0
y Front center	694,0	716,0	740,0	764,0
