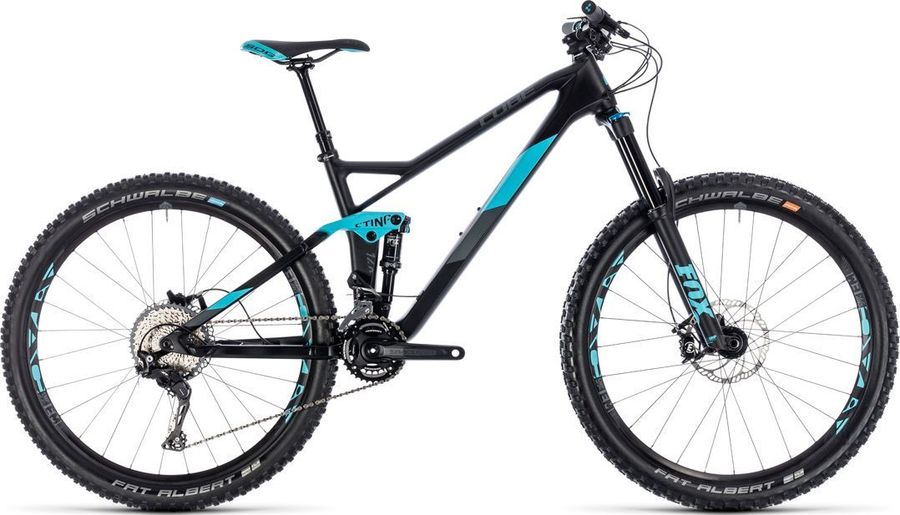

CUBE STING WS 140 HPC Race 27.5 2018
The CUBE STING WS 140 HPC Race 27.5 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
150mm
Rear travel
140mm

About the CUBE STING WS 140 HPC Race 27.5 2018
The CUBE STING WS 140 HPC Race 27.5 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,6 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
Grip
|
CUBE Race SL Grip 29.5, 1-Clamp
|
---|
Steam
|
CUBE Enduro Stem, 31.8mm
|
---|---|
Saddle
|
SDG Allure
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 13.5": 343x80mm, 16": 360x100mm, 18": 400x120mm
|
Handlebar
|
CUBE Rise Trail Bar Pro, 740mm
|
Brakes
|
Magura MT Trail Custom
|
Crankset
|
Race Face Aeffect SL 34x24T, 170mm (18":175mm)
|
---|---|
Shifter
|
Shimano XT SL-M8000-B-I, Direct Attach
|
Front derailleur
|
Shimano SLX FD-M7025-D, Direct Mount, Down Swing
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
Chain
|
KMC X11
|
Rear derailleur
|
Shimano RD-M8000-SGS
275 g
SGS
11s
|
42T(2x11-speed), 46T(1x11-speed) |
Frame
|
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
|
---|---|
Rear suspension
|
Fox Float DPS EVOL
|
Front suspension
|
Fox 34 Rhythm
|
Rims
|
Answer Atac MA, 15x110mm/12x148mm, Tubeless Ready
|
---|---|
Tires
|
Schwalbe Fat Albert, Addix Soft, Kevlar, Tubeless Easy, 2.35
|
Geometry
Size | 13" | 16" | 18" |
---|---|---|---|
a
Seat tube length
|
350,0
|
370,0
|
420,0
|
b
Seat tube angle
|
75,2º
|
75,2º
|
75,2º
|
c
Top tube length
|
547,3
|
568,8
|
591,8
|
d
Head tube length
|
102,0
|
107,0
|
117,0
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
f
Rake
|
44,0
|
44,0
|
44,0
|
g
Trail
|
107,0
|
107,0
|
107,0
|
h
Wheelbase
|
1120,0
|
1142,0
|
1166,0
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
j
Bottom bracket drop
|
15,5
|
15,5
|
15,5
|
k
Stack height
|
588,0
|
593,0
|
602,0
|
l
Reach
|
399,0
|
419,0
|
439,0
|
m
Standover height
|
-
|
-
|
-
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
y
Front center
|
694,0
|
716,0
|
740,0
|
