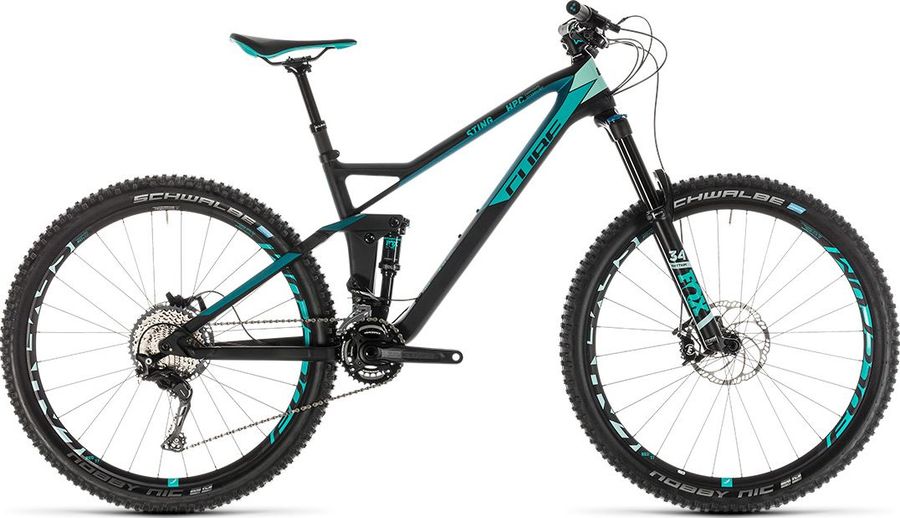

CUBE STING WS 140 HPC Race 27.5 2019

Women's Bike

MTB Trail

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Weight

12,9 kg

Front travel

150mm

Rear travel

140mm

About the CUBE STING WS 140 HPC Race 27.5 2019

The CUBE STING WS 140 HPC Race 27.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,9 kg.

Features

The CUBE STING WS 140 HPC Race 27.5 2019 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	CUBE Race SL Grip 29.5, 1-Clamp

Components
Steam	Newmen Evolution 318.4, 31.8mm
Saddle	Natural Fit Active Race WS
Headset	FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 400x125mm (340x100mm for smallest frame size)
Handlebar	Newmen Evolution 318.20, 760mm
Brakes	Magura MT Trail Custom

Drivetrain
Crankset	Race Face Aeffect SL 34x24T, 175mm
Shifter	Shimano XT SL-M8000-I, Direct Attach
Front derailleur	Shimano SLX FD-M7020-D, Direct Mount, Side Swing
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	KMC X11
Rear derailleur	Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 40T(3x11-speed), 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 47T

Frameset
Frame	HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH
Rear suspension	Fox Float DPS EVOL
Front suspension	Fox 34 Rhythm

Wheels
Rims	Fulcrum Red 77 Boost, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires	Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 2 × 11

Crank: 34-24T

Cassette: 11-42T

Speeds: 22s

Gearing

Average

0,58

Average

3,1

Compared to similar bikes, the CUBE STING WS 140 HPC Race 27.5 2019 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	13"	16"	18"
a Seat tube length	350,0	370,0	420,0
b Seat tube angle	75,2º	75,2º	75,2º
c Top tube length	547,3	568,8	591,8
d Head tube length	102,0	107,0	117,0
e Head tube angle	66,5º	66,5º	66,5º
f Rake	44,0	44,0	44,0
g Trail	107,0	107,0	107,0
h Wheelbase	1120,0	1142,0	1166,0
i Chainstay length	426,0	426,0	426,0
j Bottom bracket drop	15,5	15,5	15,5
k Stack height	588,0	593,0	602,0
l Reach	399,0	419,0	439,0
m Standover height	-	-	-
x Bottom bracket height	340,0	340,0	340,0
y Front center	694,0	716,0	740,0
