CUBE STING WS 140 HPC SL 2020

Women's Bike
MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,4 kg
Rear travel
140mm

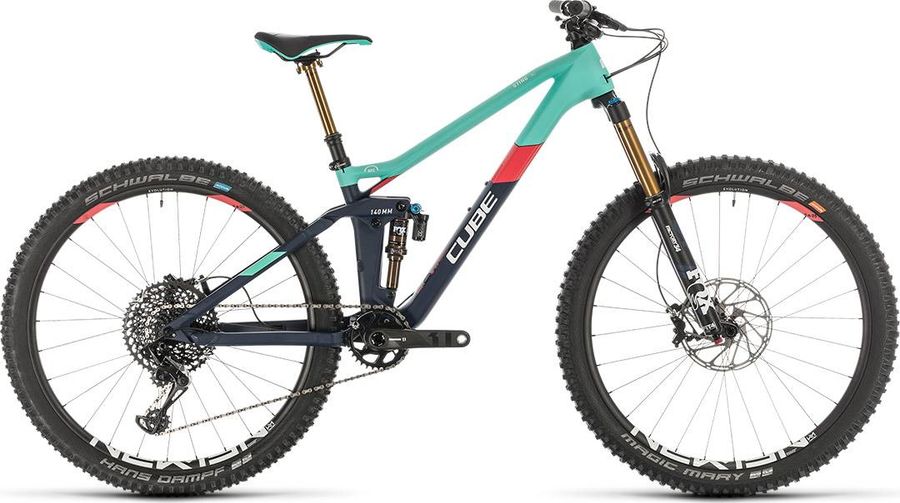

CUBE STING WS 140 HPC SL 2020

About the CUBE STING WS 140 HPC SL 2020

The CUBE STING WS 140 HPC SL 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,4 kg.

Features

The CUBE STING WS 140 HPC SL 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution SL 318.4, 31.8mm
Saddle
Natural Fit Venec WS
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Factory 31.6mm
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM X1 Eagle™ Carbon, 32T
Shifter
SRAM GX Eagle™ Trigger
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
HPC, High Performance Composite
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 34 Float Factory
Wheels
Rims
Newmen Evolution SL X.A.25
Tires
Schwalbe Magic Mary, Addix Soft, Kevlar, Tubeless Easy, 2.35

Geometry

Size 13" 16" 18" 20"
a
Seat tube length
350,0
370,0
420,0
470,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
547,0
569,0
592,0
615,0
d
Head tube length
102,0
107,0
117,0
127,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1120,0
1142,0
1166,0
1190,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
15,5
15,5
15,5
15,5
k
Stack height
588,0
593,0
602,0
611,0
l
Reach
399,0
419,0
439,0
459,0
m
Standover height
733,0
734,0
735,0
757,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
694,0
716,0
740,0
764,0
