CUBE STING WS 140 HPC SL 27.5 2019

Women's Bike
MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,5 kg
Front travel
150mm
Rear travel
140mm

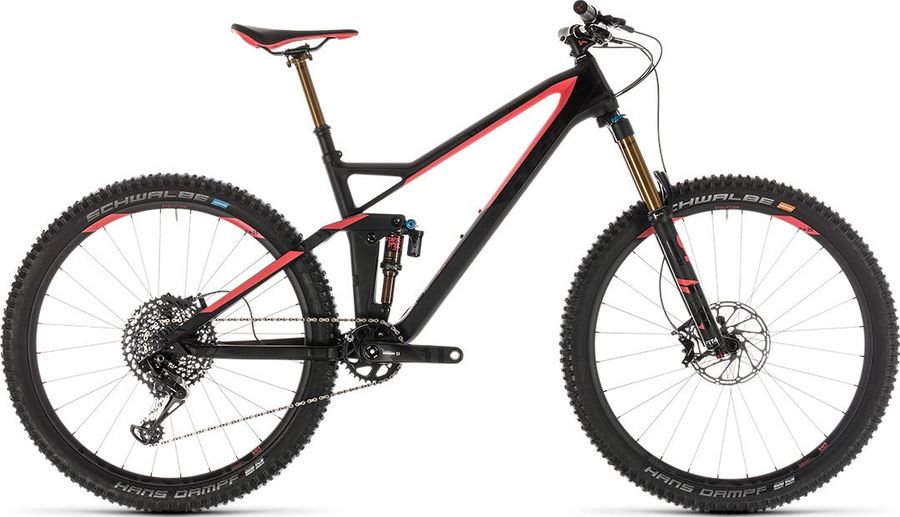

CUBE STING WS 140 HPC SL 27.5 2019

About the CUBE STING WS 140 HPC SL 27.5 2019

The CUBE STING WS 140 HPC SL 27.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,5 kg.

Features

The CUBE STING WS 140 HPC SL 27.5 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5, 1-Clamp
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Active Race WS
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 409x125mm (100mm for smallest frame size)
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X1 Eagle™ Carbon, 32T, 170mm
Shifter
SRAM GX Eagle™ Trigger
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 34 Float Factory
Wheels
Rims
Newmen Evolution SL A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Hans Dampf, Addix Soft, Kevlar, Tubeless Easy, 2.35

Geometry

Size 13" 16" 18"
a
Seat tube length
350,0
370,0
420,0
b
Seat tube angle
75,2º
75,2º
75,2º
c
Top tube length
547,3
568,8
591,8
d
Head tube length
102,0
107,0
117,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
h
Wheelbase
1120,0
1142,0
1166,0
i
Chainstay length
426,0
426,0
426,0
j
Bottom bracket drop
15,5
15,5
15,5
k
Stack height
588,0
593,0
602,0
l
Reach
399,0
419,0
439,0
m
Standover height
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
694,0
716,0
740,0
