CUBE TWO15 HPA Race 27.5 2017

MTB Downhill
Groupset
SRAM X0
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,9 kg
Front travel
203mm
Rear travel
215mm

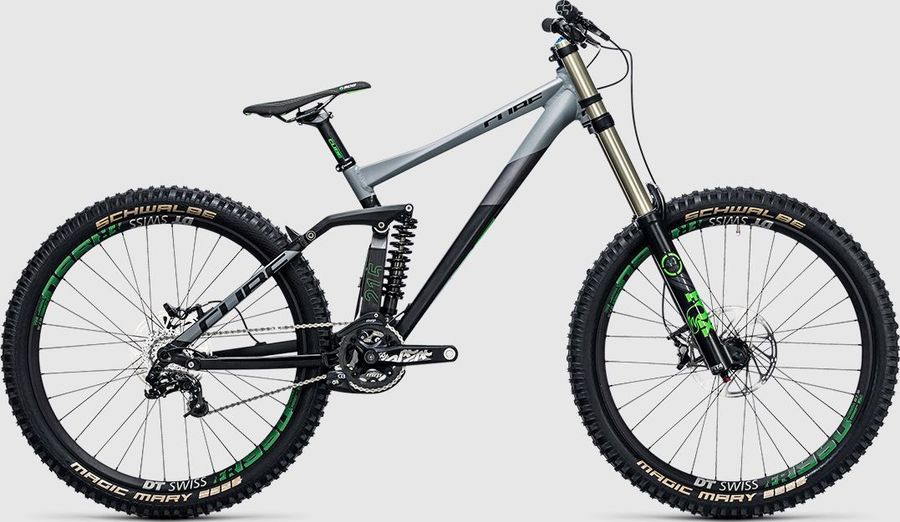

CUBE TWO15 HPA Race 27.5 2017

About the CUBE TWO15 HPA Race 27.5 2017

The CUBE TWO15 HPA Race 27.5 2017 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X0 drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 16,9 kg.

Features

The CUBE TWO15 HPA Race 27.5 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Fritzz Grip, 2-Clamp
Components
Steam
Race Face Chester 35 Direct Mount
Saddle
SDG Circuit MTN
Headset
Cane Creek 40.ZS49 / 40.EC4930
Seatpost
CUBE Performance Post, 31.6*400mm
Handlebar
Race Face Chester 35, 780mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Race Face Chester 36T, 165mm
Shifter
SRAM X9 Trigger
Rear derailleur
SRAM XO short cage, Type 2.1, 10-Speed
Front derailleur
MRP G3 Alloy Chain Guide, 32-36T, ISCG05
Chain
KMC X10
Cassette
SRAM PG-1030 10s
Cog finish cassete
Silver
Cog sizes
11-26t:11,12,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,15,17,19,22,25,28
11-32t 11,12,13,15,17,19,22,25,28,32
11-32t:11,12,14,15,17,19,22,25,28,32
11-36t:11,12,14,16,18,21,26,28,32,36
11-36t:11,13,15,17,19,22,25,28,32,36
Gearing
11-26t
11-28t
11-32t
11-36t
Model
CS-PG-1030-A1
Name
PG-1030 Cassette
Speed
10s
Technology cassete
PG
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm Travel
Front suspension
Fox 40 Performance Elite
Rear suspension
Fox VAN RC Performance
Wheels
Rims
DT CSW DH 3.7 Straightpull Wheelset, 32/32 Spokes, 20mm/157x12mm, Tubeless Ready
Tires
Schwalbe Magic Mary 2.35, Super Gravity, VertStar Tubeless Easy

Geometry

Size 16" 18" 20"
a
Seat tube length
420,0
420,0
420,0
b
Seat tube angle
72,4º
72,4º
72,4º
c
Top tube length
574,5
594,5
614,5
d
Head tube length
124,0
124,0
124,0
e
Head tube angle
63,0º
63,0º
63,0º
f
Rake
52,0
52,0
52,0
g
Trail
123,0
123,0
123,0
h
Wheelbase
1204,0
1224,0
1244,0
i
Chainstay length
439,0
439,0
439,0
j
Bottom bracket drop
8,0
8,0
8,0
k
Stack height
623,0
623,0
623,0
l
Reach
398,0
418,0
438,0
m
Standover height
-
-
-
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
765,0
785,0
805,0
