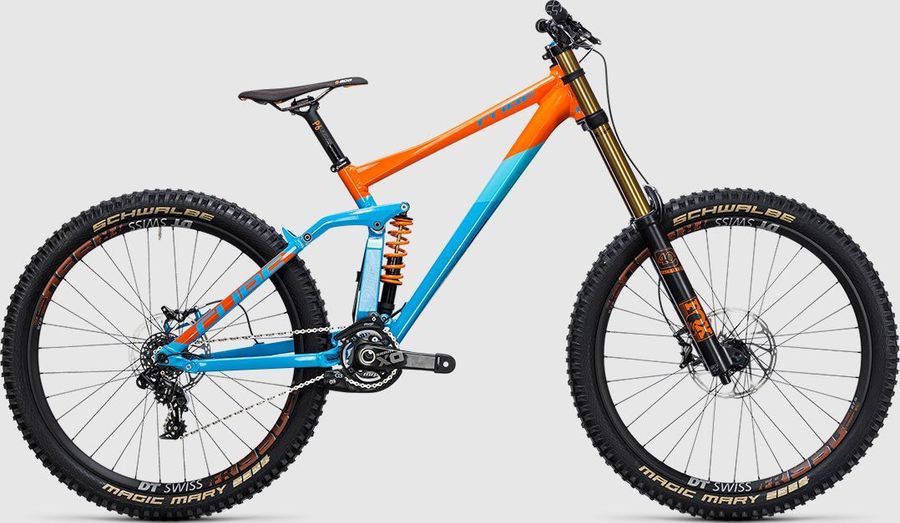

CUBE TWO15 HPA SL 27.5 2017

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,45 kg
Front travel
203mm
Rear travel
215mm
CUBE TWO15 HPA SL 27.5 2017

About the CUBE TWO15 HPA SL 27.5 2017

The CUBE TWO15 HPA SL 27.5 2017 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 15,45 kg.

Features

The CUBE TWO15 HPA SL 27.5 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Fritzz Grip, 2-Clamp
Components
Steam
Syntace F44 Direct Mount
Saddle
SDG Circuit MTN
Headset
Cane Creek 40.ZS49 / 40.EC4930
Seatpost
Syntace P6 Carbon Raceflex, 31.6mm
Handlebar
Syntace Vector Carbon High20, 780mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM XO1 DH Carbon 32T, 165mm
Shifter
SRAM XO1 DH Trigger
Front derailleur
MRP G3 Alloy Chain Guide, 32-36T, ISCG05
Cassette
SRAM XG-795 7s 136 g
Cog finish cassete
Black
Cog sizes
10-24t:10,12,14,16,18,21,24
Gearing
10-24t
Model
CS-XG-795-A1
Name
XG-795 MINI BLOCK™ Cassette
Speed
7s
Technology cassete
XG
Weight
136
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Chain
KMC X11
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm Travel
Front suspension
Fox 40 Float Factory
Rear suspension
Fox DHX2 Factory
Wheels
Rims
DT CSW DH 3.7 Straightpull Wheelset, 32/32 Spokes, 20mm / 157x12mm, Tubeless Ready
Tires
Schwalbe Magic Mary 2.35, Super Gravity, VertStar Tubeless Easy

Geometry

Size 16" 18" 20"
a
Seat tube length
420,0
420,0
420,0
b
Seat tube angle
72,4º
72,4º
72,4º
c
Top tube length
574,5
594,5
614,5
d
Head tube length
124,0
124,0
124,0
e
Head tube angle
63,0º
63,0º
63,0º
f
Rake
52,0
52,0
52,0
g
Trail
123,0
123,0
123,0
h
Wheelbase
1204,0
1224,0
1244,0
i
Chainstay length
439,0
439,0
439,0
j
Bottom bracket drop
8,0
8,0
8,0
k
Stack height
623,0
623,0
623,0
l
Reach
398,0
418,0
438,0
m
Standover height
-
-
-
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
765,0
785,0
805,0
