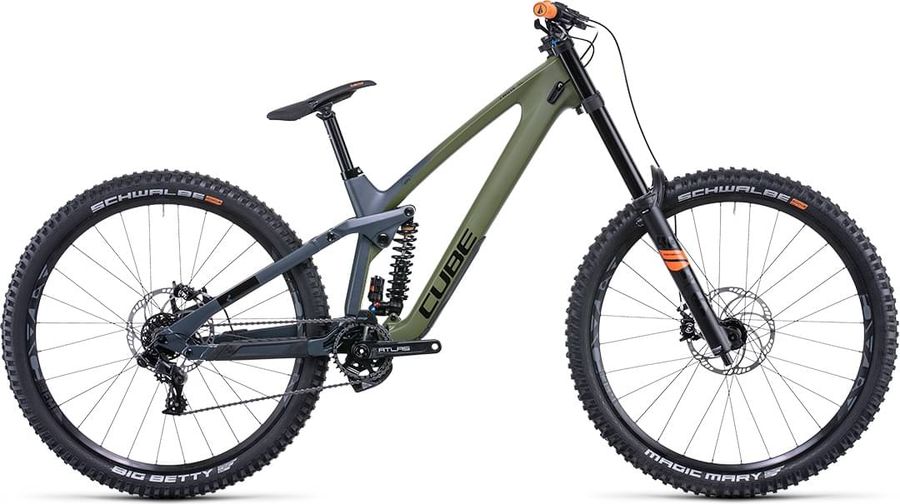

CUBE TWO15 HPC SL 2022

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
16,6 kg
Front travel
203mm
CUBE TWO15 HPC SL 2022

About the CUBE TWO15 HPC SL 2022

The CUBE TWO15 HPC SL 2022 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,6 kg.

Features

The CUBE TWO15 HPC SL 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Race Face Chester 35 Direct Mount
Saddle
SDG FLY 2.0 I-Beam
Headset
ACROS Integrated, Top & Bottom 1 1/8", Fiber Inserts for Angle Adjustment
Seatpost
SDG I-Beam, 31.6mm
Handlebar
Race Face Atlas 35, 820mm
Brakes
Magura MT5
Drivetrain
Crankset
Race Face Atlas 34T, 165mm
Shifter
SRAM GX Trigger
Chain guide
MRP SXg Chain Guide
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ETC 4-Link, ISCG Mount, AXH
Front suspension
Fox 40 Float
Rear suspension
Fox DHX2 Performance Elite
Wheels
Rims
Answer Atac DH, 20x110mm Boost/12x157mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Gravity, Addix Ultrasoft, Kevlar, 2.4

Geometry

Size MD LG XL
a
Seat tube length
400,0
400,0
400,0
b
Seat tube angle
78,49º
78,49º
78,49º
c
Top tube length
557,82
577,81
604,8
d
Head tube length
124,0
124,0
124,0
e
Head tube angle
63,29º
63,29º
63,29º
f
Rake
57,0
57,0
57,0
g
Trail
125,0
125,0
125,0
h
Wheelbase
1266,8
1286,79
1313,79
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
27,5
27,5
27,5
k
Stack height
651,72
651,68
651,63
l
Reach
444,51
464,48
491,45
m
Standover height
725,7
721,5
722,0
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
823,0
843,0
870,0
