Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,1 kg
Front travel
200mm
Rear travel
215mm

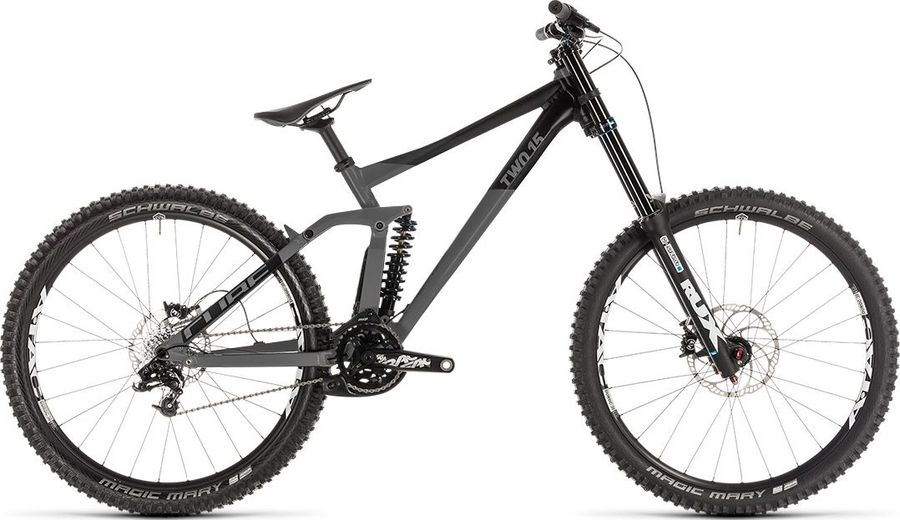

About the CUBE TWO15 Race 2019
The CUBE TWO15 Race 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 17,1 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race SL Grip 29.5, 1-Clamp
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Chester 35 Direct Mount
|
|---|---|
|
Saddle
|
Natural Fit Active Race
|
|
Headset
|
Cane Creek 40.ZS49 / 40.EC4930
|
|
Seatpost
|
CUBE Performance Post, 31.6*350mm
|
|
Handlebar
|
Race Face Chester 35, 780mm
|
|
Brake lever
|
Magura MT5
|
|
Brakes
|
Magura MT5
|
|
Crankset
|
Race Face Chester 36T, 165mm
|
|---|---|
|
Shifter
|
SRAM GX Trigger
|
|
Chain guide
|
MRP G3 Chain Guide, 34-38T, ISCG05
|
|
Bottom bracket
|
Press-fit
|
|
Chain
|
KMC X10
|
|
Cassette
|
SRAM PG-1030
10s
|
|
11-28t:11,12,13,14,15,17,19,22,25,28 11-32t 11,12,13,15,17,19,22,25,28,32 11-32t:11,12,14,15,17,19,22,25,28,32 11-36t:11,12,14,16,18,21,26,28,32,36 11-36t:11,13,15,17,19,22,25,28,32,36 11-28t 11-32t 11-36t |
|
|
Rear derailleur
|
SRAM GX 10-speed
|
|
Frame
|
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm Travel
|
|---|---|
|
Rear suspension
|
Fox VAN R/RC
|
|
Front suspension
|
SR Suntour RUX RC2
|
|
Rims
|
Answer Atac Duroc 30, 20x110mm / 12x157mm, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Magic Mary, 2.35
|
|
Spokes
|
Answer Atac Duroc 30 wheelset
|
|
Rear hub
|
Answer Atac Duroc 30 wheelset, 20mm x 110mm front, 12mm x 157mm rear
|
|
Front hub
|
Answer Atac Duroc 30 wheelset, 20mm x 110mm front, 12mm x 157mm rear
|
Geometry
| Size | SM | MD |
|---|---|---|
|
a
Seat tube length
|
420,0
|
420,0
|
|
b
Seat tube angle
|
72,5º
|
72,5º
|
|
c
Top tube length
|
575,0
|
595,0
|
|
d
Head tube length
|
124,0
|
124,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
|
f
Rake
|
52,0
|
52,0
|
|
g
Trail
|
123,0
|
123,0
|
|
h
Wheelbase
|
1204,0
|
1224,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
8,0
|
8,0
|
|
k
Stack height
|
623,0
|
623,0
|
|
l
Reach
|
398,0
|
418,0
|
|
m
Standover height
|
-
|
-
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
|
y
Front center
|
765,0
|
785,0
|
