CUBE TWO15 RACE 2022

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,9 kg
Front travel
203mm
Rear travel
200mm

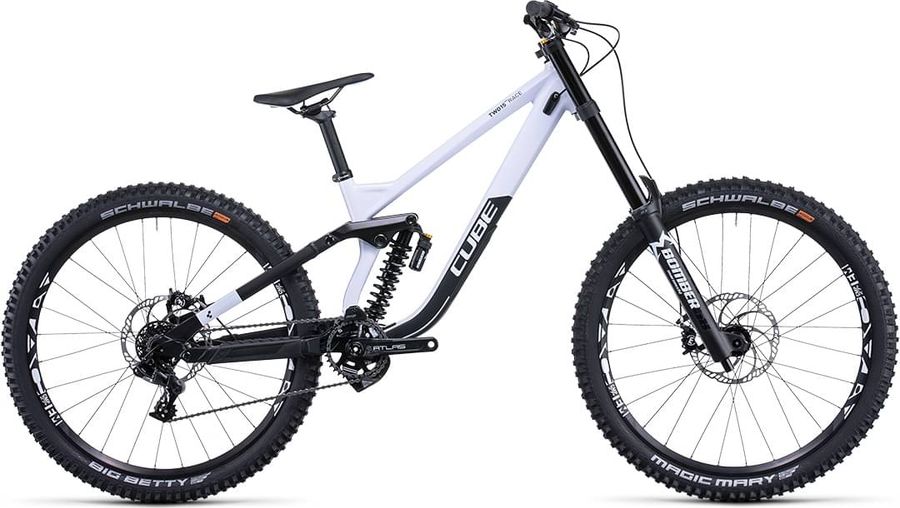

CUBE TWO15 RACE 2022

About the CUBE TWO15 RACE 2022

The CUBE TWO15 RACE 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,9 kg.

Features

The CUBE TWO15 RACE 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Race Face Chester 35 Direct Mount
Saddle
Natural Fit Venec Lite
Headset
ACROS Integrated, Top & Bottom 1 1/8", Fiber Inserts for Angle Adjustment
Seatpost
CUBE Performance Post, 31.6mm
Handlebar
Race Face Atlas 35 820mm 35mm
Brakes
Magura MT5
Drivetrain
Crankset
Race Face Atlas 34T, 165mm
Shifter
SRAM GX Trigger
Chain guide
MRP SXg Chain Guide
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, Carbon Rocker Arm, ETC 4-Link, ISCG Mount, 200mm travel
Front suspension
Marzocchi Bomber 58 FIT
Rear suspension
Marzocchi Bomber CR
Wheels
Rims
Answer Atac DH TR29, 20x110mm/12x157mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Addix Soft, Super Gravity, Tubeless Easy, 2.4

Geometry

Size MD LG XL
a
Seat tube length
380,0
400,0
400,0
b
Seat tube angle
78,49º
78,49º
78,49º
c
Top tube length
542,01
562,0
582,0
d
Head tube length
124,0
124,0
124,0
e
Head tube angle
62,49º
62,49º
62,49º
f
Rake
51,0
51,0
51,0
g
Trail
128,0
128,0
128,0
h
Wheelbase
1238,91
1258,91
1278,91
i
Chainstay length
427,0
427,0
427,0
j
Bottom bracket drop
8,0
8,0
8,0
k
Stack height
615,21
615,17
615,17
l
Reach
433,43
453,4
473,4
m
Standover height
694,54
711,36
709,15
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
812,0
832,0
852,0
