Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,8 kg
Front travel
200mm
Rear travel
215mm

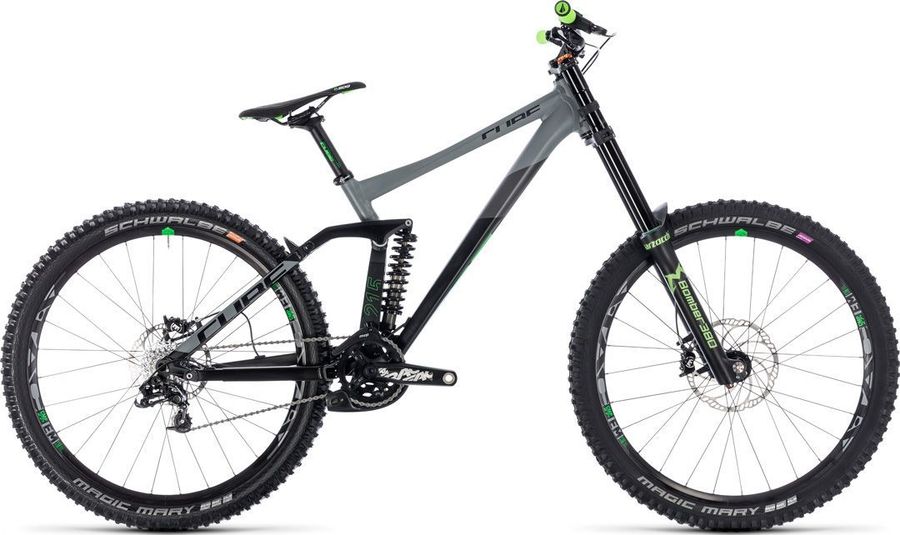

About the CUBE TWO15 Race 27.5 2018
The CUBE TWO15 Race 27.5 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,8 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
SDG Slater
|
|---|
|
Steam
|
Race Face Chester 35 Direct Mount
|
|---|---|
|
Saddle
|
SDG Circuit MTN
|
|
Headset
|
Cane Creek 40.ZS49 / 40.EC4930
|
|
Seatpost
|
CUBE Performance Post, 31.6*400mm
|
|
Handlebar
|
Race Face Chester 35, 780mm
|
|
Brake lever
|
Magura MT5
|
|
Brakes
|
Magura MT5
|
|
Crankset
|
Race Face Chester 36T, 165mm
|
|---|---|
|
Shifter
|
SRAM X7 Trigger
|
|
Chain guide
|
MRP G3, fits 34-38 tooth chainrings
|
|
Bottom bracket
|
Pressfit
|
|
Chain
|
KMC X10
|
|
Cassette
|
SRAM PG-1030
10s
|
|
11-28t:11,12,13,14,15,17,19,22,25,28 11-32t 11,12,13,15,17,19,22,25,28,32 11-32t:11,12,14,15,17,19,22,25,28,32 11-36t:11,12,14,16,18,21,26,28,32,36 11-36t:11,13,15,17,19,22,25,28,32,36 11-28t 11-32t 11-36t |
|
|
Rear derailleur
|
SRAM GX 10-speed
|
|
Frame
|
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm Travel
|
|---|---|
|
Rear suspension
|
Fox VAN R/RC
|
|
Front suspension
|
Marzocchi Bomber 380 CR
|
|
Rims
|
Answer Atac DH, 20x110mm / 12x157mm, 584x25C, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Magic Mary, Addix Ultrasoft, Kevlar, Super Gravity, Tubeless Easy, 2.35
|
|
Rear hub
|
Answer Atac DH, 20mm x 110mm / 12mm x 157mm, 584x25C
|
|
Front hub
|
Answer Atac DH, 20mm x 110mm / 12mm x 157mm, 584x25C
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
420,0
|
420,0
|
420,0
|
|
b
Seat tube angle
|
72,4º
|
72,4º
|
72,4º
|
|
c
Top tube length
|
575,0
|
595,0
|
615,0
|
|
d
Head tube length
|
124,0
|
124,0
|
124,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
63,0º
|
|
f
Rake
|
52,0
|
52,0
|
52,0
|
|
g
Trail
|
123,0
|
123,0
|
123,0
|
|
h
Wheelbase
|
1204,0
|
1224,0
|
1244,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
8,0
|
8,0
|
8,0
|
|
k
Stack height
|
623,0
|
623,0
|
623,0
|
|
l
Reach
|
398,0
|
418,0
|
438,0
|
|
m
Standover height
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
347,0
|
|
y
Front center
|
765,0
|
785,0
|
805,0
|
