Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
203mm
Rear travel
215mm

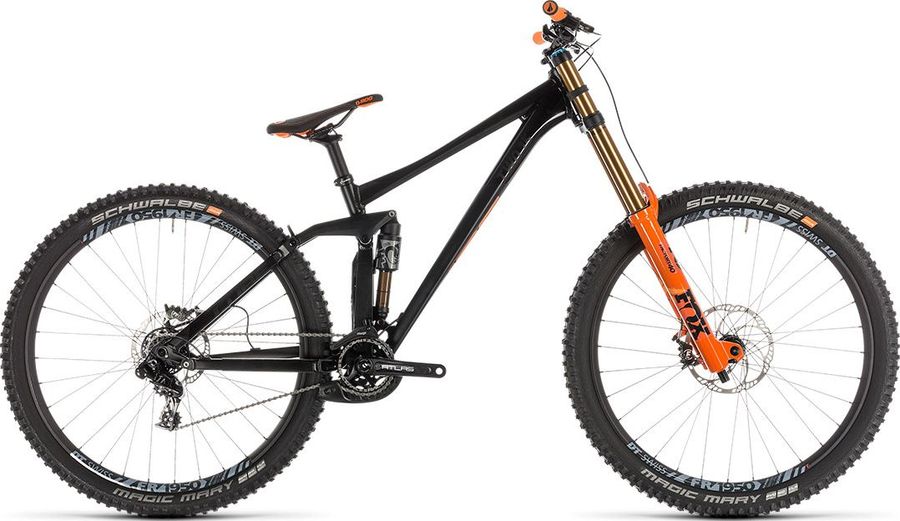

About the CUBE TWO15 SL 2019
The CUBE TWO15 SL 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,4 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
SDG Slater
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Chester 35 Direct Mount
|
|---|---|
|
Saddle
|
SDG FLY MTN 2
|
|
Headset
|
Cane Creek 40.ZS49 / 40.EC49\30
|
|
Seatpost
|
CUBE Performance Post, 31.6mm
|
|
Handlebar
|
Race Face Atlas 35 800mm 35mm
|
|
Brake lever
|
Magura MT7
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
Race Face Atlas 36T, 165mm
|
|---|---|
|
Shifter
|
SRAM GX Trigger
|
|
Chain guide
|
MRP G3 Chain Guide, 34-38T, ISCG05
|
|
Bottom bracket
|
Press-fit
|
|
Rear derailleur
|
SRAM GX DH
7s
|
|
|
|
|
Cassette
|
SRAM PG-720
7s
224 g
|
|
|
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm travel (29": 200mm)
|
|---|---|
|
Front suspension
|
Fox 40 Float Factory
|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Rims
|
DT CSW DH 3.7 / 3.9, 20mm / 157x12mm, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Magic Mary, Addix Ultrasoft, Kevlar, Super Gravity, Tubeless Easy, 2.35
|
|
Spokes
|
DT CSW DH 3.7 / 3.9 wheelset
|
|
Rear hub
|
DT CSW DH 3.7 / 3.9 wheelset, 20mm x 110mm front, 12mm x 157mm rear
|
|
Front hub
|
DT CSW DH 3.7 / 3.9 wheelset, 20mm x 110mm front, 12mm x 157mm rear
|
Geometry
| Size | LG | SM | XL | MD |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
420,0
|
420,0
|
420,0
|
|
b
Seat tube angle
|
71,0º
|
72,5º
|
71,0º
|
72,5º
|
|
c
Top tube length
|
567,0
|
575,0
|
587,0
|
595,0
|
|
d
Head tube length
|
142,0
|
124,0
|
142,0
|
124,0
|
|
e
Head tube angle
|
63,8º
|
63,0º
|
63,8º
|
63,0º
|
|
f
Rake
|
58,0
|
52,0
|
58,0
|
52,0
|
|
g
Trail
|
120,0
|
123,0
|
120,0
|
123,0
|
|
h
Wheelbase
|
1256,0
|
1204,0
|
1276,0
|
1224,0
|
|
i
Chainstay length
|
448,0
|
439,0
|
448,0
|
439,0
|
|
j
Bottom bracket drop
|
28,0
|
8,0
|
28,0
|
8,0
|
|
k
Stack height
|
659,0
|
623,0
|
659,0
|
623,0
|
|
l
Reach
|
438,0
|
398,0
|
458,0
|
418,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
346,0
|
347,0
|
346,0
|
347,0
|
|
y
Front center
|
809,0
|
765,0
|
829,0
|
785,0
|
