CUBE TWO15 SL 27.5 2018

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
203mm
Rear travel
215mm

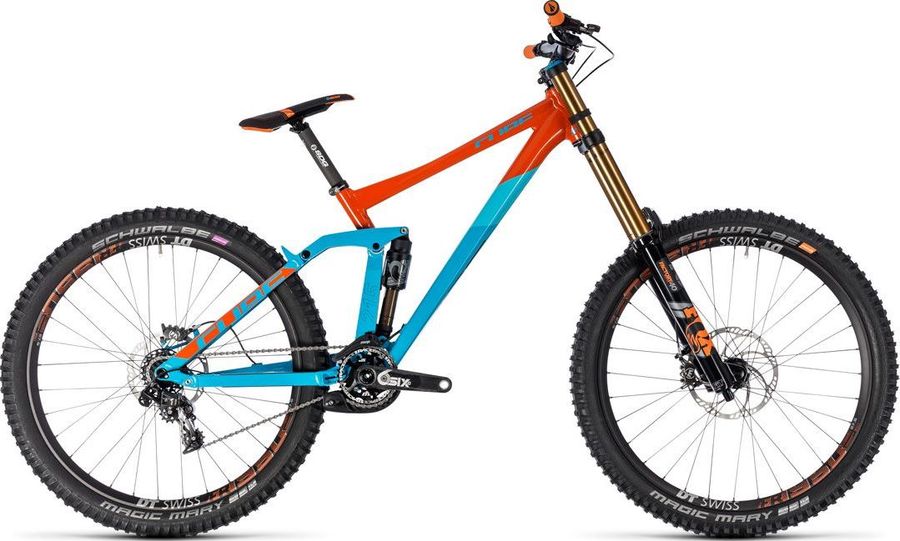

CUBE TWO15 SL 27.5 2018

About the CUBE TWO15 SL 27.5 2018

The CUBE TWO15 SL 27.5 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 15,5 kg.

Features

The CUBE TWO15 SL 27.5 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Slater
Components
Steam
Race Face Atlas 35 Direct Mount
Saddle
SDG FLY 2.0 I-Beam
Headset
Cane Creek 40.ZS49 / 40.EC4930
Seatpost
SDG I-Beam Carbon, 31.6mm
Handlebar
Race Face SixC 35, 820mm
Brake lever
Magura MT7
Brakes
Magura MT7
Drivetrain
Crankset
Race Face SixC 32T, 165mm
Shifter
SRAM XO1 DH Trigger
Chain guide
MRP G3 Alloy, fits 32-36 tooth chainrings
Bottom bracket
Pressfit
Cassette
SRAM XG-795 7s 136 g
Cog finish cassete
Black
Cog sizes
10-24t:10,12,14,16,18,21,24
Gearing
10-24t
Model
CS-XG-795-A1
Name
XG-795 MINI BLOCK™ Cassette
Speed
7s
Technology cassete
XG
Weight
136
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm Travel
Front suspension
Fox 40 Float Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
DT CSW DH 3.7 Straightpull Wheelset, 32/32 Spokes, 20mm / 157x12mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Addix Ultrasoft, Kevlar, Super Gravity, Tubeless Easy, 2.35
Spokes
32 / 32 spoke count
Rear hub
DT CSW DH 3.7 Straightpull Wheelset, 20mm / 157mm x 12mm
Front hub
DT CSW DH 3.7 Straightpull Wheelset, 20mm / 157mm x 12mm

Geometry

Size SM MD LG
a
Seat tube length
420,0
420,0
420,0
b
Seat tube angle
72,4º
72,4º
72,4º
c
Top tube length
575,0
595,0
615,0
d
Head tube length
124,0
124,0
124,0
e
Head tube angle
63,0º
63,0º
63,0º
f
Rake
52,0
52,0
52,0
g
Trail
123,0
123,0
123,0
h
Wheelbase
1204,0
1224,0
1244,0
i
Chainstay length
439,0
439,0
439,0
j
Bottom bracket drop
8,0
8,0
8,0
k
Stack height
623,0
623,0
623,0
l
Reach
398,0
418,0
438,0
m
Standover height
-
-
-
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
765,0
785,0
805,0
