Devinci AC GX 11S 2020

E-Bike
MTB Enduro
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,46 kg
Front travel
180mm
Rear travel
170mm

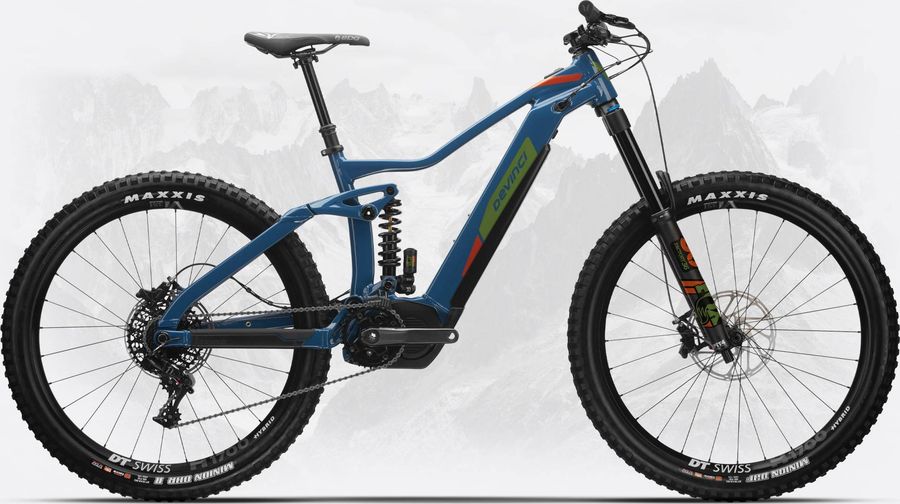

Devinci AC GX 11S 2020

About the Devinci AC GX 11S 2020

The Devinci AC GX 11S 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 24,46 kg.

Features

The Devinci AC GX 11S 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine R 35 | 50mm | 0deg
Saddle
SDG Radar
Battery
Shimano STEPS E8035 504Wh Lithium-ion
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
Fox Transfer Perfomance 31.6 1xLever
Handlebar
Race Face Turbine R35 20mm Riserbar | 800mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Chain
Shimano 11s
Crankset
Shimano E8050 HollowTech
Motor
Shimano STEPS E8000 250W
Shifter
SRAM X01 11s Single Click
Chain guide
E13 Chain Guide for Steps
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Aluminum Optimum G04 170mm, Handcrafted in Canada / Fabriqué à la main au Canada
Rear suspension
Fox DHX2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
DT Swiss H1700 27.5 15x110mm TL Ready | 35mm inner
Tires
Maxxis Minion DHF 27.5x2.8" 3C MaxxTerra EXO+ TR

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
76,6º
76,1º
76,5º
76,0º
76,4º
75,9º
76,3º
75,8º
c
Top tube length
575,0
577,0
598,0
600,0
621,0
623,0
645,0
647,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1202,0
1204,0
1226,0
1228,0
1250,0
1252,0
1277,0
1279,0
i
Chainstay length
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
j
Bottom bracket drop
-9,0
-2,0
-9,0
-2,0
-9,0
-2,0
-9,0
-2,0
k
Stack height
591,0
595,0
600,0
604,0
609,0
613,0
622,0
626,0
l
Reach
433,0
428,0
453,0
448,0
473,0
468,0
493,0
488,0
m
Standover height
734,0
728,0
743,0
737,0
771,0
765,0
800,0
794,0
x
Bottom bracket height
364,0
357,5
364,0
357,5
364,0
357,5
364,0
357,5
y
Front center
-
-
-
-
-
-
-
-
