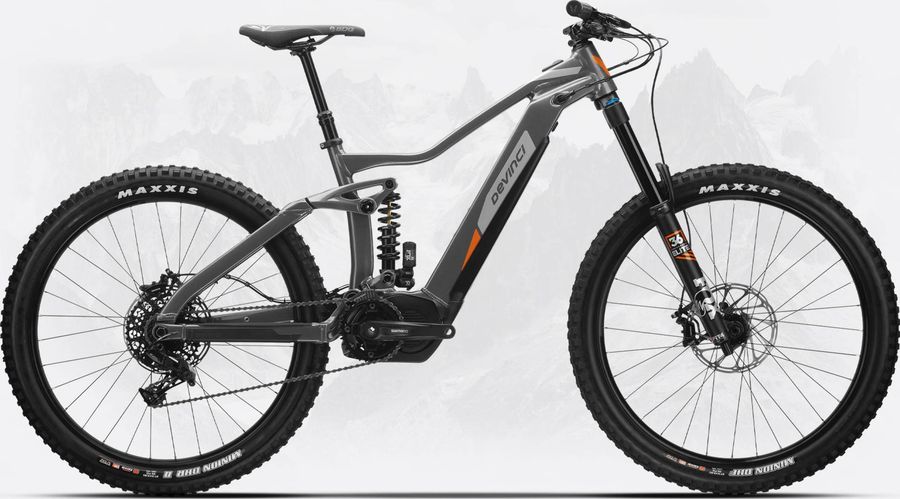

Devinci AC NX 11S 2020
The Devinci AC NX 11S 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,68 kg
Front travel
180mm
Rear travel
170mm
About the Devinci AC NX 11S 2020
The Devinci AC NX 11S 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,68 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Devinci Performance w/lock-on
|
|---|
|
Steam
|
V2 Pro 35 | 50mm
|
|---|---|
|
Saddle
|
SDG Radar
|
|
Battery
|
Shimano STEPS E8035 504Wh Lithium-ion
|
|
Headset
|
FSA Orbit 1.5 Zero Stack
|
|
Seatpost
|
TranzX Dropper 31.6mm 1xLever
|
|
Handlebar
|
V2 Pro 35 Riserbar15mm | 780mm
|
|
Discs
|
SRAM Centerline 200mm
|
|
Brakes
|
SRAM Guide RE
Hydraulic
415 g
|
|
|
|
|
Crankset
|
Shimano E8000
|
|---|---|
|
Motor
|
Shimano STEPS E8000 250W
|
|
Shifter
|
SRAM GX 11s Single Click
|
|
Chain guide
|
E13 Chain Guide for Steps
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
Aluminum Optimum G04 170mm, Handcrafted in Canada / Fabriqué à la main au Canada
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Rims
|
V2 Comp Wide db Tubeless ready | 36mm inner
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.8" 3C MaxxTerra EXO+ TR
|
|
Spokes
|
Stainless 14G w/Nylok
|
|
Rear hub
|
SRAM MTH746 TA 12x148 BOOST
|
|
Front hub
|
SRAM MTH716 TA 15x110
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
420,0
|
420,0
|
455,0
|
455,0
|
495,0
|
495,0
|
|
b
Seat tube angle
|
76,6º
|
76,1º
|
76,5º
|
76,0º
|
76,4º
|
75,9º
|
76,3º
|
75,8º
|
|
c
Top tube length
|
575,0
|
577,0
|
598,0
|
600,0
|
621,0
|
623,0
|
645,0
|
647,0
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
115,0
|
125,0
|
125,0
|
140,0
|
140,0
|
|
e
Head tube angle
|
65,5º
|
65,0º
|
65,5º
|
65,0º
|
65,5º
|
65,0º
|
65,5º
|
65,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1202,0
|
1204,0
|
1226,0
|
1228,0
|
1250,0
|
1252,0
|
1277,0
|
1279,0
|
|
i
Chainstay length
|
441,0
|
443,0
|
441,0
|
443,0
|
441,0
|
443,0
|
441,0
|
443,0
|
|
j
Bottom bracket drop
|
-9,0
|
-2,0
|
-9,0
|
-2,0
|
-9,0
|
-2,0
|
-9,0
|
-2,0
|
|
k
Stack height
|
591,0
|
595,0
|
600,0
|
604,0
|
609,0
|
613,0
|
622,0
|
626,0
|
|
l
Reach
|
433,0
|
428,0
|
453,0
|
448,0
|
473,0
|
468,0
|
493,0
|
488,0
|
|
m
Standover height
|
734,0
|
728,0
|
743,0
|
737,0
|
771,0
|
765,0
|
800,0
|
794,0
|
|
x
Bottom bracket height
|
364,0
|
357,5
|
364,0
|
357,5
|
364,0
|
357,5
|
364,0
|
357,5
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
