Devinci AC XT 2019

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
180mm
Rear travel
170mm

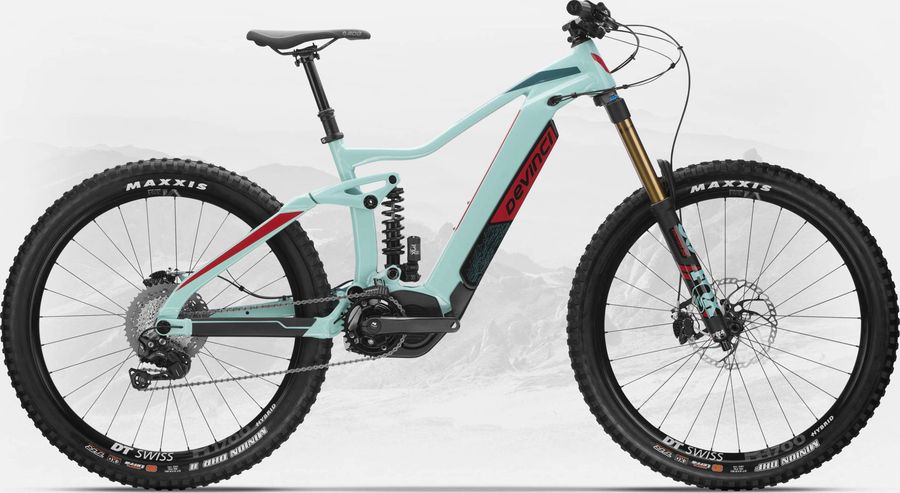

Devinci AC XT 2019

About the Devinci AC XT 2019

The Devinci AC XT 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Devinci AC XT 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine R 35 | 50mm
Saddle
SDG Fly Mtn
Battery
Shimano STEPS E8020 504Wh Lithium-ion
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
Fox Transfer Perfomance 31.6 1xLever SM:100 MD:125 LG-XL:150
Handlebar
Race Face Turbine R35 20mm Riserbar | 800mm
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
Shimano E8050 HollowTech
Motor
Shimano STEPS E8000 250W
Shifter
Shimano XT M8000
Chain guide
E13 Chain Guide for Steps
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Aluminum Optimum G04 170mm, Handcrafted in Canada / Fabriqué à la main au Canada
Rear suspension
Fox DHX2 Performance Elite
Front suspension
Fox 36 Float Factory
Wheels
Rims
DT Swiss H1700 27.5 15x110mm TL Ready | 35mm inner
Tires
Maxxis Minion DHF 27.5x2.8" 3C, EXO, TR

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
75,7º
75,2º
75,6º
75,1º
75,6º
75,1º
75,5º
75,0º
c
Top tube length
575,0
577,0
598,0
600,0
621,0
623,0
646,0
648,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1195,0
1197,0
1219,0
1221,0
1243,0
1245,0
1270,0
1272,0
i
Chainstay length
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
j
Bottom bracket drop
-9,0
-2,0
-9,0
-2,0
-9,0
-2,0
-9,0
-2,0
k
Stack height
591,0
595,0
600,0
604,0
609,0
613,0
622,0
626,0
l
Reach
423,0
418,0
443,0
438,0
463,0
458,0
483,0
478,0
m
Standover height
726,0
720,0
743,0
737,0
771,0
765,0
800,0
794,0
x
Bottom bracket height
364,0
357,5
364,0
357,5
364,0
357,5
364,0
357,5
y
Front center
-
-
-
-
-
-
-
-
