BikeWise

Devinci DC NX/GX 2018

E-Bike
MTB Enduro
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Devinci DC NX/GX 2018

About the Devinci DC NX/GX 2018

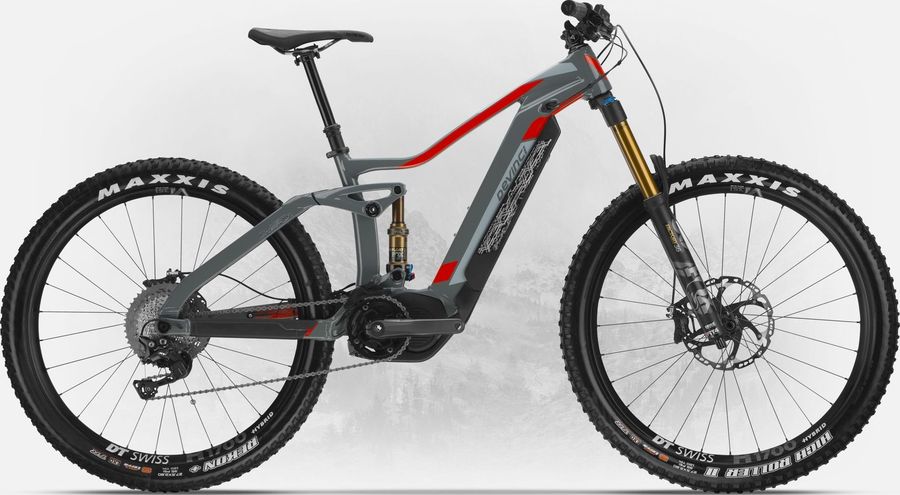

The Devinci DC NX/GX 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Devinci DC NX/GX 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Bel-Air 2
Battery
Shimano STEPS E8020 Lithium-ion
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
RaceFace Aeffect 125mm 31.6mm 1x Remote
Handlebar
V2 Pro Riserbar 35mm 780mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano E8050 HollowTech
Motor
Shimano STEPS E8000 20Mph
Shifter
SRAM NX 11s
Chain guide
E13 Chain Guide for Steps
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Rear suspension
Fox Float DPS Performance Elite EVOL
Front suspension
Fox 36 Float Performance Elite
Wheels
Rims
V2 Comp Wide db, 36mm inner
Tires
Maxxis High Roller II 27.5x2.8" 3C Exo TL
Spokes
Stainless 14G w/Nylok
Rear hub
SRAM MTH746 B148x12 XD
Front hub
SRAM MTH716 15x110

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
c
Top tube length
572,0
573,0
595,0
597,0
618,0
620,0
643,0
645,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1177,0
1179,0
1202,0
1203,0
1226,0
1227,0
1252,0
1253,0
i
Chainstay length
442,0
444,0
442,0
444,0
442,0
444,0
442,0
444,0
j
Bottom bracket drop
-4,0
3,0
-4,0
3,0
26,0
3,0
-4,0
3,0
k
Stack height
583,0
587,0
592,0
596,0
601,0
605,0
615,0
619,0
l
Reach
423,0
418,0
443,0
438,0
463,0
458,0
483,0
478,0
m
Standover height
708,0
701,0
731,0
724,0
757,0
749,0
785,0
778,0
x
Bottom bracket height
359,5
352,5
359,5
352,5
329,5
352,5
359,5
352,5
y
Front center
-
-
-
-
-
-
-
-
