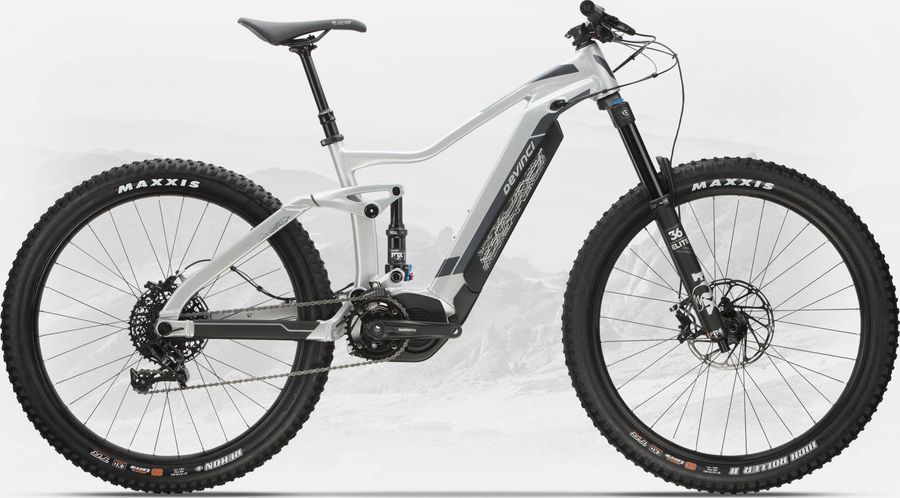

Devinci DC NX/GX 2019
The Devinci DC NX/GX 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
About the Devinci DC NX/GX 2019
The Devinci DC NX/GX 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Devinci Performance w/lock-on
|
|---|
|
Steam
|
V2 Pro 35 | 50mm
|
|---|---|
|
Saddle
|
SDG Bel-Air 2
|
|
Battery
|
Shimano STEPS E8020 504Wh Lithium-ion
|
|
Headset
|
FSA Orbit 1.5 Zero Stack
|
|
Seatpost
|
TranzX Dropper 31.6mm 1xLever SM:100 MD:125 LG:150 XL:170
|
|
Handlebar
|
V2 Pro 35 Riserbar15mm | 780mm
|
|
Brakes
|
SRAM Guide T
Hydraulic
|
|
|
|
|
Crankset
|
Shimano E8000
|
|---|---|
|
Motor
|
Shimano STEPS E8000 250W
|
|
Shifter
|
SRAM NX 11s
|
|
Chain guide
|
E13 Chain Guide for Steps
|
|
Rear derailleur
|
SRAM GX 1x11 X-HORIZON Rear Derailleur
11s
265 g
|
|
|
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
Aluminum Optimum G04 150mm, Handcrafted in Canada / Fabriqué à la main au Canada
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance Elite EVOL
|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rims
|
V2 Comp Wide db Tubeless ready | 36mm inner
|
|---|---|
|
Tires
|
Maxxis High Roller II 27.5x2.8" 3C Exo TL
|
|
Spokes
|
Stainless 14G w/Nylok
|
|
Rear hub
|
SRAM MTH746 TA 12x148 BOOST
|
|
Front hub
|
SRAM MTH716 TA 15x110
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
420,0
|
420,0
|
455,0
|
455,0
|
495,0
|
495,0
|
|
b
Seat tube angle
|
75,6º
|
75,1º
|
75,6º
|
75,1º
|
75,5º
|
75,0º
|
75,4º
|
74,9º
|
|
c
Top tube length
|
574,0
|
576,0
|
597,0
|
599,0
|
620,0
|
622,0
|
645,0
|
647,0
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
115,0
|
125,0
|
125,0
|
140,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1177,0
|
1179,0
|
1202,0
|
1203,0
|
1226,0
|
1227,0
|
1252,0
|
1253,0
|
|
i
Chainstay length
|
442,0
|
444,0
|
442,0
|
444,0
|
442,0
|
444,0
|
442,0
|
444,0
|
|
j
Bottom bracket drop
|
-4,0
|
3,0
|
-4,0
|
3,0
|
-4,0
|
3,0
|
-4,0
|
3,0
|
|
k
Stack height
|
583,0
|
587,0
|
592,0
|
596,0
|
601,0
|
605,0
|
615,0
|
619,0
|
|
l
Reach
|
423,0
|
418,0
|
443,0
|
438,0
|
463,0
|
458,0
|
483,0
|
478,0
|
|
m
Standover height
|
719,0
|
712,0
|
736,0
|
729,0
|
764,0
|
758,0
|
797,0
|
789,0
|
|
x
Bottom bracket height
|
359,0
|
352,5
|
359,0
|
352,5
|
359,0
|
352,5
|
359,0
|
352,5
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
