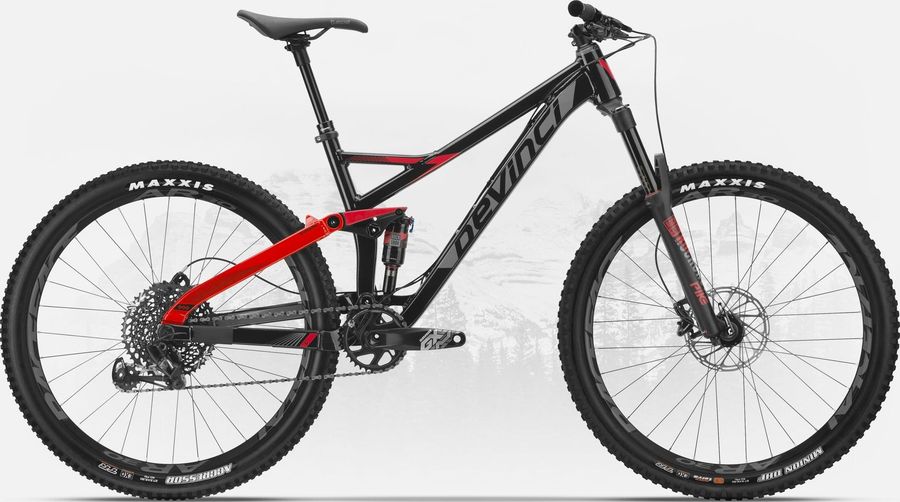

Devinci Django 27.5 GX eagle 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
140mm
Rear travel
120mm
Devinci Django 27.5 GX eagle 2018

About the Devinci Django 27.5 GX eagle 2018

The Devinci Django 27.5 GX eagle 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The Devinci Django 27.5 GX eagle 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Bel-Air 2
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
RaceFace Aeffect 125mm 31.6mm 1x Remote
Handlebar
Race Face Aeffect R 35 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM GX Eagle 34T Boost 148
Shifter
SRAM GX 12s
Bottom bracket
SRAM BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum Optimum G04 120mm
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
RaceFace AR30, 30mm inner
Tires
Maxxis Minion DHF 27.5x2.30" 3C, Exo, Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Boost148 w/XD Driver
Front hub
Formula TA 110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
435,0
435,0
470,0
470,0
500,0
500,0
b
Seat tube angle
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
c
Top tube length
567,0
568,0
590,0
591,0
613,0
615,0
638,0
640,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1119,0
1121,0
1143,0
1144,0
1167,0
1168,0
1193,0
1194,0
i
Chainstay length
418,0
420,0
418,0
420,0
418,0
420,0
418,0
420,0
j
Bottom bracket drop
15,0
21,0
15,0
21,0
15,0
21,0
15,0
21,0
k
Stack height
577,0
581,0
586,0
590,0
595,0
599,0
609,0
613,0
l
Reach
418,0
413,0
437,0
433,0
461,0
453,0
477,0
473,0
m
Standover height
697,0
691,0
709,0
703,0
727,0
721,0
738,0
732,0
x
Bottom bracket height
340,0
334,0
340,0
334,0
340,0
334,0
340,0
334,0
y
Front center
-
-
-
-
-
-
-
-
