Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,36 kg
Front travel
140mm
Rear travel
120mm

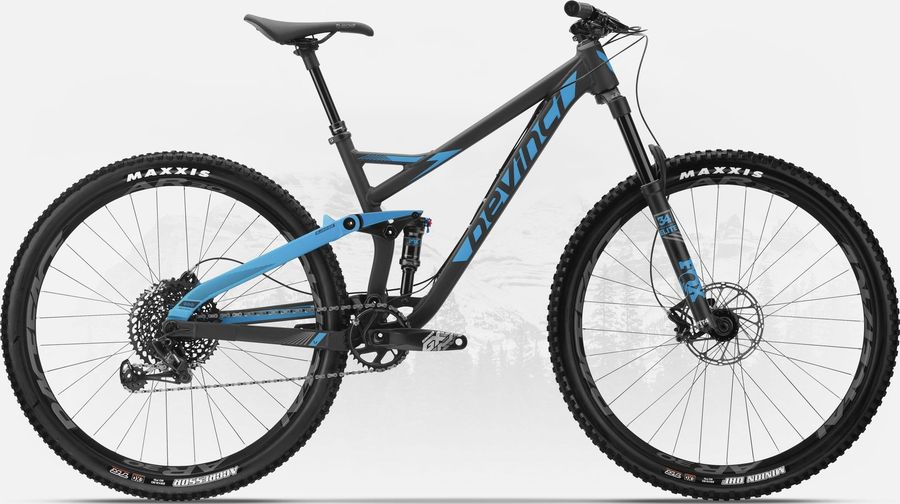

About the Devinci Django 29 GX eagle 2018
The Devinci Django 29 GX eagle 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,36 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Devinci Performance w/lock-on
|
|---|
|
Steam
|
V2 Pro 35mm*45mm
|
|---|---|
|
Saddle
|
SDG Bel-Air 2
|
|
Headset
|
FSA Orbit 1.5 Zero Stack
|
|
Seatpost
|
RaceFace Aeffect 125mm 31.6mm 1x Remote
|
|
Handlebar
|
Race Face Aeffect R 35 780mm
|
|
Discs
|
SRAM Centerline 180mm
|
|
Brakes
|
SRAM Level TL
Hydraulic
370 g
|
|
|
|
|
Crankset
|
SRAM GX Eagle 34T Boost 148
|
|---|---|
|
Shifter
|
SRAM GX 12s
|
|
Bottom bracket
|
SRAM BB92
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum Optimum G04 120mm
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance Elite
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
RaceFace AR30, 30mm inner
|
|---|---|
|
Tires
|
Maxxis Minion DHF 29x2.30" EXO, Tubeless Ready
|
|
Spokes
|
Stainless 14G w/Nylok
|
|
Rear hub
|
Formula Boost148 w/XD Driver
|
|
Front hub
|
Formula TA 110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
435,0
|
435,0
|
470,0
|
470,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
75,0º
|
74,5º
|
75,0º
|
74,5º
|
75,0º
|
74,5º
|
75,0º
|
74,5º
|
|
c
Top tube length
|
574,0
|
575,0
|
594,0
|
595,0
|
618,0
|
619,0
|
641,0
|
642,0
|
|
d
Head tube length
|
105,0
|
105,0
|
105,0
|
105,0
|
115,0
|
115,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
68,5º
|
68,0º
|
68,5º
|
68,0º
|
68,5º
|
68,0º
|
68,5º
|
68,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1133,0
|
1135,0
|
1154,0
|
1155,0
|
1178,0
|
1179,0
|
1202,0
|
1203,0
|
|
i
Chainstay length
|
425,0
|
427,0
|
425,0
|
427,0
|
425,0
|
427,0
|
425,0
|
427,0
|
|
j
Bottom bracket drop
|
33,0
|
38,0
|
33,0
|
38,0
|
33,0
|
38,0
|
33,0
|
38,0
|
|
k
Stack height
|
610,0
|
612,0
|
610,5
|
612,5
|
619,0
|
621,0
|
629,0
|
631,0
|
|
l
Reach
|
417,0
|
413,0
|
437,0
|
433,0
|
457,0
|
453,0
|
477,0
|
473,0
|
|
m
Standover height
|
716,0
|
710,0
|
729,0
|
723,0
|
747,0
|
741,0
|
754,0
|
748,0
|
|
x
Bottom bracket height
|
341,0
|
336,0
|
341,0
|
336,0
|
341,0
|
336,0
|
341,0
|
336,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
