Devinci Django 29 NX 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,94 kg
Front travel
140mm
Rear travel
120mm

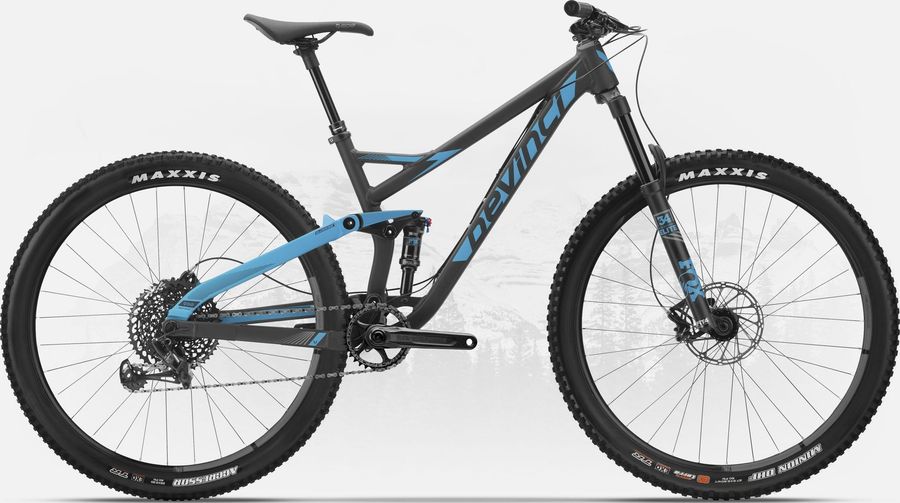

Devinci Django 29 NX 2018

About the Devinci Django 29 NX 2018

The Devinci Django 29 NX 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,94 kg.

Features

The Devinci Django 29 NX 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Bel-Air 2
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
FSA ajustable 125mm 31.6mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
RaceFace Aeffect DM30T
Shifter
SRAM NX 11s
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Aluminum Optimum G04 120mm
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance Elite
Wheels
Rims
V2 Comp db, Tubeless Compatible, 29mm inner
Tires
Maxxis Minion DHF 29x2.30" EXO, Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Boost148
Front hub
Formula TA 110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
435,0
435,0
470,0
470,0
500,0
500,0
b
Seat tube angle
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
c
Top tube length
574,0
575,0
594,0
595,0
618,0
619,0
641,0
642,0
d
Head tube length
105,0
105,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
68,5º
68,0º
68,5º
68,0º
68,5º
68,0º
68,5º
68,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1133,0
1135,0
1154,0
1155,0
1178,0
1179,0
1202,0
1203,0
i
Chainstay length
425,0
427,0
425,0
427,0
425,0
427,0
425,0
427,0
j
Bottom bracket drop
33,0
38,0
33,0
38,0
33,0
38,0
33,0
38,0
k
Stack height
610,0
612,0
610,5
612,5
619,0
621,0
629,0
631,0
l
Reach
417,0
413,0
437,0
433,0
457,0
453,0
477,0
473,0
m
Standover height
716,0
710,0
729,0
723,0
747,0
741,0
754,0
748,0
x
Bottom bracket height
341,0
336,0
341,0
336,0
341,0
336,0
341,0
336,0
y
Front center
-
-
-
-
-
-
-
-
