Devinci Django Carbon 27.5 NX 2018

MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,36 kg
Front travel
140mm
Rear travel
120mm
Devinci Django Carbon 27.5 NX 2018

About the Devinci Django Carbon 27.5 NX 2018

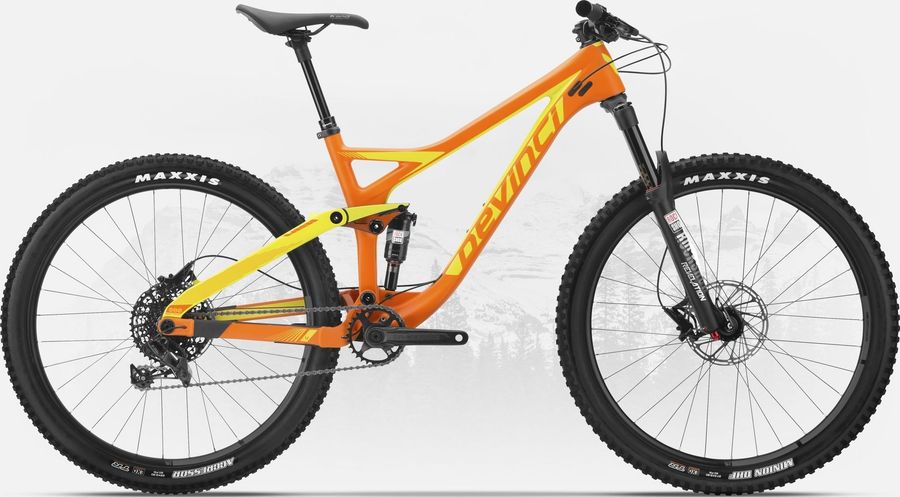

The Devinci Django Carbon 27.5 NX 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,36 kg.

Features

The Devinci Django Carbon 27.5 NX 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Bel-Air 2
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
FSA ajustable 125mm 31.6mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
RaceFace Aeffect DM30T
Shifter
SRAM NX 11s
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Carbon DMC-G 120mm
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
V2 Comp db, Tubeless Compatible 29mm inner
Tires
Maxxis Minion DHF 27.5x2.30" Exo, Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Boost148
Front hub
Formula TA 110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
435,0
435,0
470,0
470,0
500,0
500,0
b
Seat tube angle
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
75,0º
74,5º
c
Top tube length
567,0
568,0
590,0
591,0
613,0
615,0
638,0
640,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1119,0
1121,0
1143,0
1144,0
1167,0
1168,0
1193,0
1194,0
i
Chainstay length
418,0
420,0
418,0
420,0
418,0
420,0
418,0
420,0
j
Bottom bracket drop
15,0
21,0
15,0
21,0
15,0
21,0
15,0
21,0
k
Stack height
577,0
581,0
586,0
590,0
595,0
599,0
609,0
613,0
l
Reach
418,0
413,0
437,0
433,0
461,0
453,0
477,0
473,0
m
Standover height
697,0
691,0
709,0
703,0
727,0
721,0
738,0
732,0
x
Bottom bracket height
340,0
334,0
340,0
334,0
340,0
334,0
340,0
334,0
y
Front center
-
-
-
-
-
-
-
-
