Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,68 kg
Front travel
140mm
Rear travel
120mm

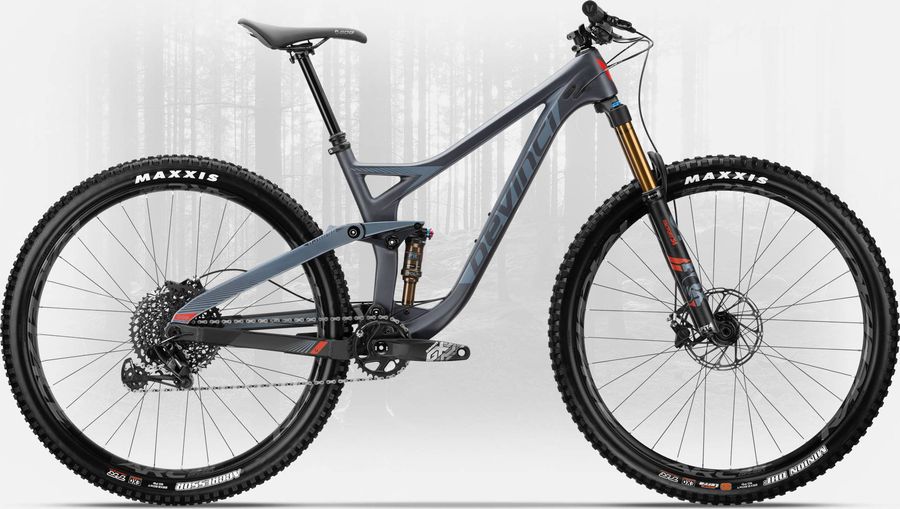

About the Devinci Django Carbon 29 GX 12S LTD 2019
The Devinci Django Carbon 29 GX 12S LTD 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,68 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Devinci Performance w/lock-on
|
|---|
|
Steam
|
Race Face Turbine R 35 | 50mm
|
|---|---|
|
Saddle
|
SDG Bel-Air 2
|
|
Headset
|
FSA Orbit 1.5 Zero Stack
|
|
Seatpost
|
Fox Transfer Perfomance 31.6 1xLever SM:100 MD:125 LG-XL:150
|
|
Handlebar
|
Race Face Next R 35 Riserbar 20mm | 800mm
|
|
Discs
|
SRAM Centerline 180mm
|
|
Brakes
|
SRAM Level TLM
Hydraulic
356 g
|
|
|
|
|
Crankset
|
SRAM GX Eagle 32T Boost 148
|
|---|---|
|
Shifter
|
SRAM GX 12s
|
|
Bottom bracket
|
SRAM DUB PF92
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
|
|---|---|
|
Front suspension
|
Fox 34 Float Factory
|
|
Rear suspension
|
Fox Float DPS Factory
|
|
Rims
|
RaceFace ARC35 29er | 35mm inner
|
|---|---|
|
Tires
|
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
|
|
Spokes
|
Stainless 14G w/Nylok
|
|
Rear hub
|
RaceFace Vault Boost148x12 XD 6bolts
|
|
Front hub
|
RaceFace Vault TA 15x110
|
Geometry
| Size | SM Low | SM High | MD Low | MD High | LG High | LG Low | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
435,0
|
435,0
|
470,0
|
470,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
75,3º
|
75,2º
|
75,3º
|
75,2º
|
75,1º
|
75,2º
|
75,1º
|
75,0º
|
|
c
Top tube length
|
575,0
|
576,0
|
595,0
|
596,0
|
619,0
|
619,0
|
642,0
|
643,0
|
|
d
Head tube length
|
105,0
|
105,0
|
105,0
|
105,0
|
115,0
|
115,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
67,9º
|
68,0º
|
67,9º
|
67,9º
|
68,0º
|
68,0º
|
67,9º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1135,0
|
1132,0
|
1155,0
|
1152,0
|
1176,0
|
1179,0
|
1203,0
|
1,2e3
|
|
i
Chainstay length
|
427,0
|
425,0
|
427,0
|
425,0
|
425,0
|
427,0
|
427,0
|
425,0
|
|
j
Bottom bracket drop
|
38,0
|
26,0
|
38,0
|
26,0
|
26,0
|
38,0
|
38,0
|
26,0
|
|
k
Stack height
|
612,0
|
613,0
|
612,5
|
613,0
|
622,0
|
621,0
|
631,0
|
632,0
|
|
l
Reach
|
413,0
|
412,0
|
433,0
|
432,0
|
452,0
|
453,0
|
473,0
|
472,0
|
|
m
Standover height
|
710,0
|
719,0
|
723,0
|
731,0
|
751,0
|
741,0
|
748,0
|
762,0
|
|
x
Bottom bracket height
|
336,0
|
348,0
|
336,0
|
348,0
|
348,0
|
336,0
|
336,0
|
348,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
