Devinci Django Carbon 29 X01 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,12 kg
Front travel
140mm
Rear travel
120mm

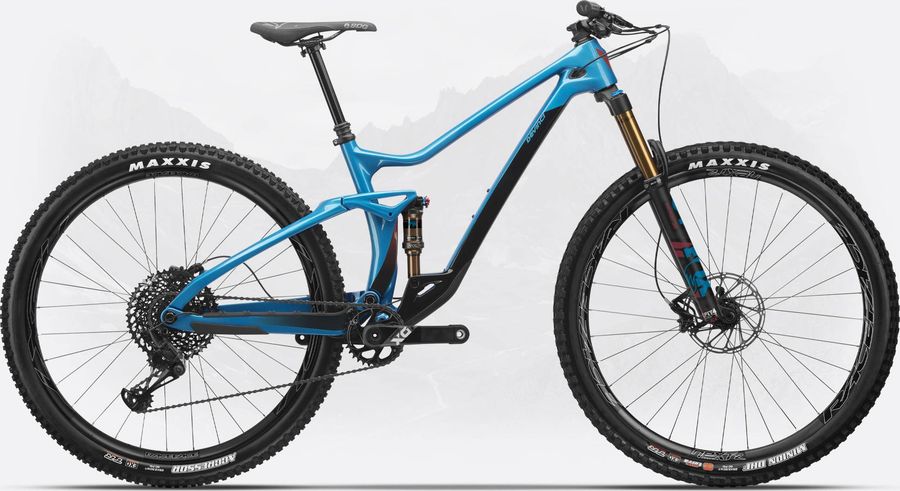

Devinci Django Carbon 29 X01 2020

About the Devinci Django Carbon 29 X01 2020

The Devinci Django Carbon 29 X01 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,12 kg.

Features

The Devinci Django Carbon 29 X01 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine R 35 | 50mm | 0deg
Saddle
SDG Radar
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
Fox Transfer Perf 31.6 1xLever
Handlebar
Race Face Next R 35 Riserbar 20mm | 800mm
Discs
SRAM Centerline 180mm
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM X01 Eagle 32T SuperBoost 157
Shifter
SRAM X01 Eagle 12s
Bottom bracket
SRAM DUB 73mm Threaded
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
RaceFace Next R36 29 Carbon Boost110x15 | 36mm inner
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
380,0
380,0
400,0
400,0
430,0
430,0
465,0
465,0
500,0
500,0
b
Seat tube angle
78,1º
77,6º
78,1º
77,6º
77,9º
77,4º
77,8º
77,3º
77,6º
77,1º
c
Top tube length
541,0
543,0
561,0
563,0
585,0
587,0
609,0
611,0
633,0
634,0
d
Head tube length
95,0
95,0
95,0
95,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1140,0
1141,0
1160,0
1161,0
1184,0
1185,0
1213,0
1214,0
1242,0
1243,0
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
435,0
437,0
440,0
442,0
j
Bottom bracket drop
35,0
41,0
35,0
41,0
35,0
41,0
35,0
41,0
35,0
41,0
k
Stack height
611,0
615,0
611,0
615,0
620,0
624,0
629,0
633,0
638,0
642,0
l
Reach
413,0
407,0
433,0
427,0
453,0
447,0
472,0
467,0
492,0
487,0
m
Standover height
715,0
710,0
725,0
720,0
740,0
735,0
755,0
750,0
765,0
760,0
x
Bottom bracket height
339,0
333,0
339,0
333,0
339,0
333,0
339,0
333,0
339,0
333,0
y
Front center
-
-
-
-
-
-
-
-
-
-
