Devinci Django Carbon 29 X01 Eagle 12S 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
120mm

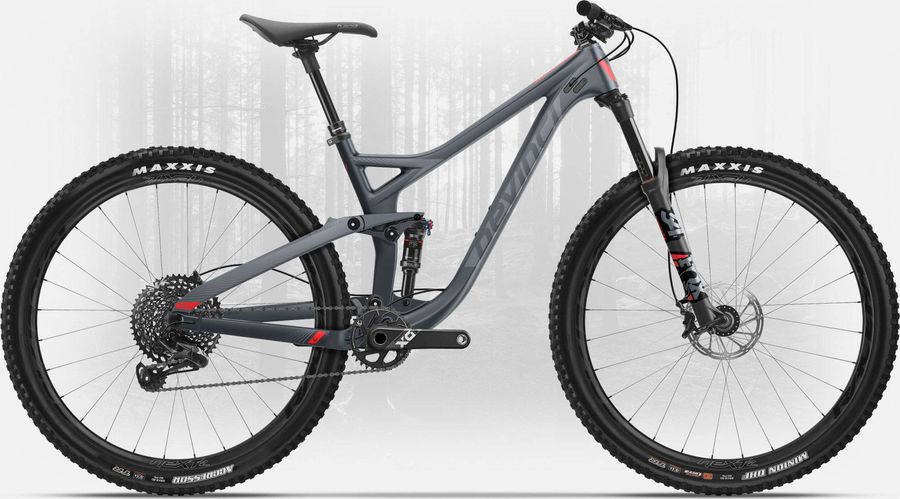

Devinci Django Carbon 29 X01 Eagle 12S 2019

About the Devinci Django Carbon 29 X01 Eagle 12S 2019

The Devinci Django Carbon 29 X01 Eagle 12S 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Devinci Django Carbon 29 X01 Eagle 12S 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine R 35 | 50mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
Fox Transfer Perfomance 31.6 1xLever SM:100 MD:125 LG-XL:150
Handlebar
Race Face Next R 35 Riserbar 20mm | 800mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X01 Eagle 32T Boost 148
Shifter
SRAM X01 Eagle 12s
Bottom bracket
SRAM DUB PF92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
RaceFace Next R36 29 Carbon Boost110x15 | 36mm inner
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
435,0
435,0
470,0
470,0
500,0
500,0
b
Seat tube angle
75,8º
75,3º
75,8º
75,3º
75,7º
75,2º
75,6º
75,1º
c
Top tube length
574,0
575,0
594,0
595,0
618,0
619,0
641,0
642,0
d
Head tube length
105,0
105,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
68,5º
68,0º
68,5º
68,0º
68,5º
68,0º
68,5º
68,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1133,0
1135,0
1154,0
1155,0
1178,0
1179,0
1202,0
1203,0
i
Chainstay length
425,0
427,0
425,0
427,0
425,0
427,0
425,0
427,0
j
Bottom bracket drop
33,0
38,0
33,0
38,0
33,0
38,0
33,0
38,0
k
Stack height
610,0
612,0
610,5
612,5
619,0
621,0
629,0
631,0
l
Reach
417,0
413,0
437,0
433,0
457,0
453,0
477,0
473,0
m
Standover height
716,0
710,0
729,0
723,0
747,0
741,0
754,0
748,0
x
Bottom bracket height
341,0
336,0
341,0
336,0
341,0
336,0
341,0
336,0
y
Front center
-
-
-
-
-
-
-
-
