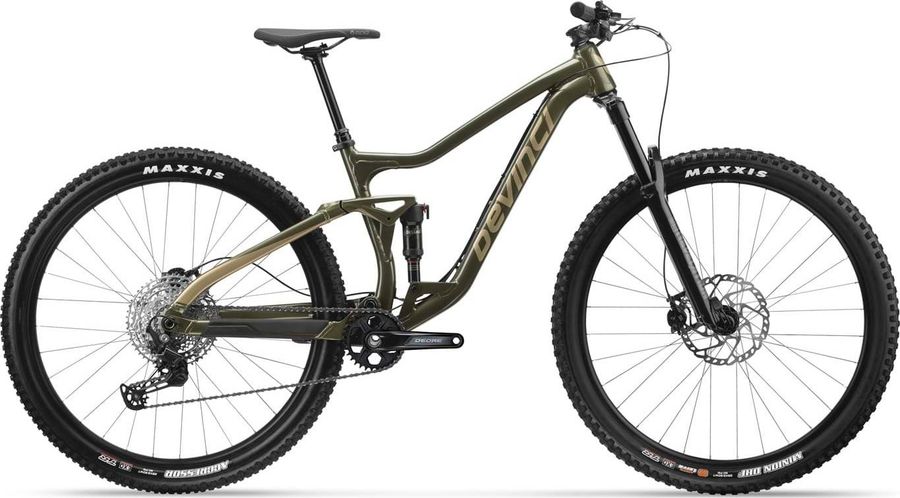

Devinci Django Deore 12S 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
120mm
Devinci Django Deore 12S 2021

About the Devinci Django Deore 12S 2021

The Devinci Django Deore 12S 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Devinci Django Deore 12S 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance | w/lock-on
Components
Steam
V2 Pro | B:35mm | L:50mm | 0°
Saddle
SDG FLY MTN
Headset
FSA Orbit | 1.5 | Zero Stack
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore M6130 | 32T | Superboost 157
Shifter
Shimano Deore M6100 | 12s | I-spec EV
Bottom bracket
Shimano BB52 | BSA | 68/73mm
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum Optimum G04 120mm
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
V2 Comp | 29mm inner | TR
Tires
Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
Spokes
Sapim Stainless 14G w/Nylok
Rear hub
Novatec DH92SB-MS | 6bolts | TA 12x157mm | Microspline
Front hub
Novatec D791SB-B15 | 6bolts | TA 15x110mm

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
380,0
380,0
400,0
400,0
430,0
430,0
465,0
465,0
500,0
500,0
b
Seat tube angle
78,1º
77,6º
78,1º
77,6º
77,9º
77,4º
77,8º
77,3º
77,6º
77,1º
c
Top tube length
541,0
543,0
561,0
563,0
585,0
587,0
609,0
611,0
633,0
634,0
d
Head tube length
95,0
95,0
95,0
95,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
67,0º
66,5º
f
Rake
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
g
Trail
103,0
108,0
103,0
108,0
103,0
108,0
103,0
108,0
103,0
108,0
h
Wheelbase
1140,0
1141,0
1160,0
1161,0
1184,0
1185,0
1213,0
1214,0
1242,0
1243,0
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
435,0
437,0
440,0
442,0
j
Bottom bracket drop
35,0
41,0
35,0
41,0
35,0
41,0
35,0
41,0
35,0
41,0
k
Stack height
611,0
615,0
611,0
615,0
620,0
624,0
629,0
633,0
638,0
642,0
l
Reach
413,0
407,0
433,0
427,0
454,0
447,0
472,0
467,0
492,0
487,0
m
Standover height
734,0
727,0
739,0
732,0
741,0
733,0
766,0
759,0
789,0
782,0
x
Bottom bracket height
339,0
333,0
339,0
333,0
339,0
333,0
339,0
333,0
339,0
333,0
y
Front center
-
-
-
-
-
-
-
-
-
-
