Devinci Kobain Deore 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,44 kg
Front travel
120mm

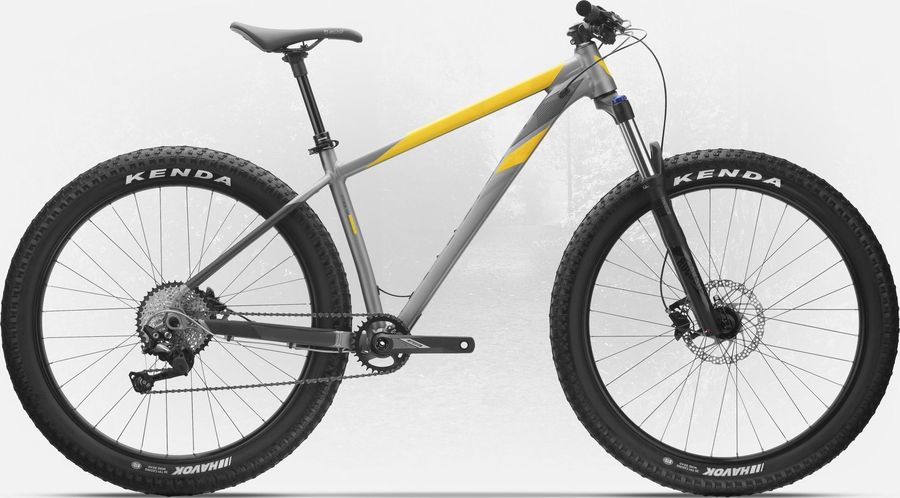

Devinci Kobain Deore 2018

About the Devinci Kobain Deore 2018

The Devinci Kobain Deore 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,44 kg.

Features

The Devinci Kobain Deore 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Pedals
Wellgo w/CRMO spindle
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Bel-Air 2
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
FSA ajustable 125mm 31.6mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Comet Mega Exo B148 30T
Shifter
Shimano Deore M610
Bottom bracket
FSA PF BB92
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Aluminum Optimum G04
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
V2 Comp Wide db, 36mm inner
Tires
Kenda Havok K1184 27.5*3.0
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Boost148
Front hub
Formula TA 110mm

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
430,0
470,0
500,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
595,0
615,0
635,0
655,0
d
Head tube length
105,0
105,0
110,0
120,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1129,0
1149,0
1170,0
1191,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
620,0
620,0
625,0
634,0
l
Reach
407,0
427,0
445,0
463,0
m
Standover height
733,0
756,0
781,0
809,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
-
-
-
-
