Devinci Kobain HT 27.5+ NX 11s 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,36 kg
Front travel
130mm

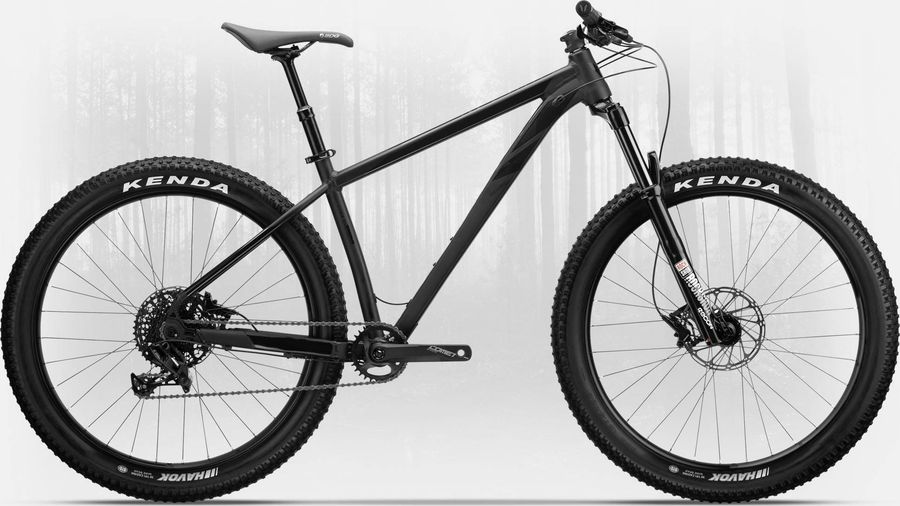

Devinci Kobain HT 27.5+ NX 11s 2019

About the Devinci Kobain HT 27.5+ NX 11s 2019

The Devinci Kobain HT 27.5+ NX 11s 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,36 kg.

Features

The Devinci Kobain HT 27.5+ NX 11s 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Pedals
Wellgo w/CRMO spindle
Components
Steam
V2 Pro 35 | 50mm
Saddle
SDG Bel-Air 2
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
TranzX Dropper 31.6mm 1xLever SM:100 MD:125 LG:150 XL:170
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
FSA Comet Mega Exo B148 30T
Shifter
SRAM NX 11s
Bottom bracket
FSA PF BB92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Aluminum Optimum G04, Designed & Assembled in Canada / Conçu et assemblé au Canada
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Tires
Kenda Havok K1184 27.5*2.8
Spokes
Stainless 14G w/Nylok
Rear hub
Formula TA 12x148 BOOST
Front hub
Formula TA 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
430,0
470,0
500,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
595,0
615,0
635,0
655,0
d
Head tube length
105,0
105,0
110,0
120,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1129,0
1149,0
1170,0
1191,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
620,0
620,0
625,0
634,0
l
Reach
407,0
427,0
445,0
463,0
m
Standover height
733,0
756,0
781,0
809,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
-
-
-
-
