Devinci Marshall XT 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

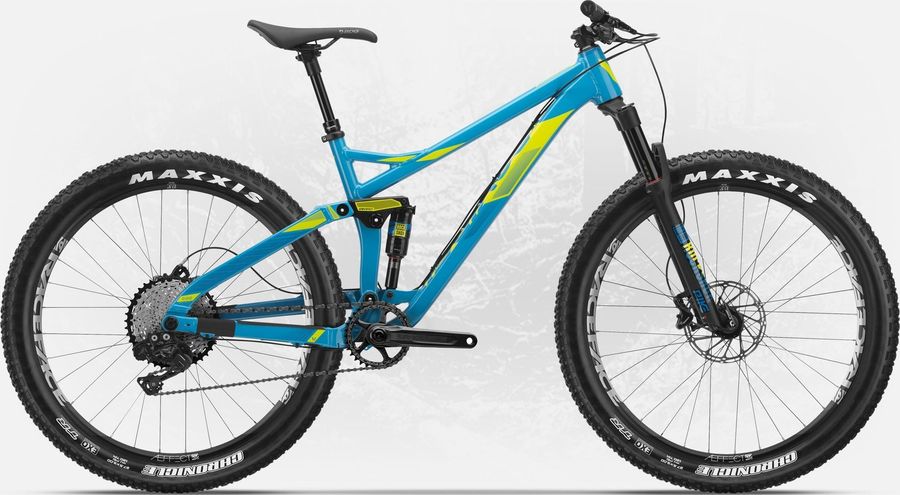

Devinci Marshall XT 2018

About the Devinci Marshall XT 2018

The Devinci Marshall XT 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Devinci Marshall XT 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine 35mm*50mm
Saddle
SDG Bel-Air
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
Rock Shox Reverb Stealth 125mm 31.6mm
Handlebar
Race Face Atlas 20mm Rise 35mm 800mm
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
RaceFace Turbine DM30 10/11s PF
Shifter
Shimano SLX M7000 11s
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Aluminum Optimum G04 110mm
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
RaceFace Aeffect Plus40 27.5 110x15
Tires
Maxxis Chronicle 27.5x3.0

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
435,0
470,0
500,0
b
Seat tube angle
74,8º
74,8º
74,8º
74,8º
c
Top tube length
571,0
595,0
618,0
643,0
d
Head tube length
105,0
115,0
125,0
140,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1143,0
1167,0
1190,0
1216,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
19,0
19,0
19,0
19,0
k
Stack height
590,0
599,0
609,0
622,0
l
Reach
415,0
435,0
455,0
475,0
m
Standover height
701,0
711,0
725,0
738,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
-
-
-
-
