BikeWise

Devinci Minus XT 2019

MTB Fatbike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid
Weight
15,96 kg

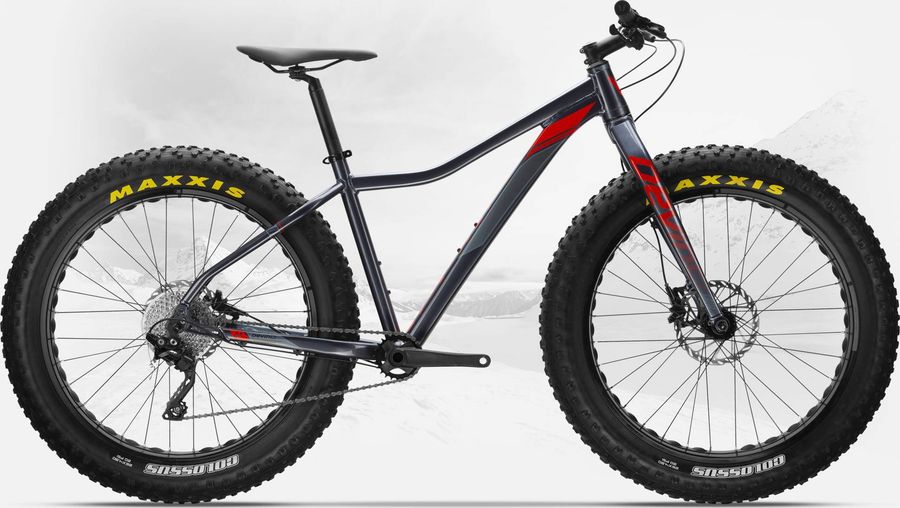

Devinci Minus XT 2019

About the Devinci Minus XT 2019

The Devinci Minus XT 2019 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes. The bike weighs approximately 15,96 kg.

Features

The Devinci Minus XT 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci
Pedals
Wellgo M113
Components
Steam
V2 Pro 31.8mm
Saddle
V2 Pro
Headset
CH-6201 Semi-Integrated
Seatpost
V2 Comp 31.6mm
Handlebar
V2 Comp Riserbar 31.8mm*740mm
Discs
Avid G2CS 180mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Chain
Shimano 10s
Crankset
Samox 24T
Shifter
Shimano Deore M610
Bottom bracket
CHUAN WEI
Rear derailleur
Shimano RD-M786-SGS 266 g SGS 10s
Average weight (g)
266
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M786-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Front suspension
Aluminum Optimum G02
Frame
Aluminum Optimum G02, Designed in Canada / Conçu au Canada
Wheels
Rims
V2 Comp DB 100mm
Tires
Maxxis, Colossus 26x4.8
Spokes
Stainless 14G
Rear hub
Formula Disc FatBike
Front hub
Formula Disc FatBike

Geometry

Size SM MD LG
a
Seat tube length
400,0
435,0
470,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
575,0
600,0
625,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1092,0
1117,0
1143,0
i
Chainstay length
455,0
455,0
455,0
j
Bottom bracket drop
22,0
22,0
22,0
k
Stack height
588,0
597,0
607,0
l
Reach
395,0
417,5
440,0
m
Standover height
688,0
714,0
742,0
x
Bottom bracket height
321,0
321,0
321,0
y
Front center
-
-
-
