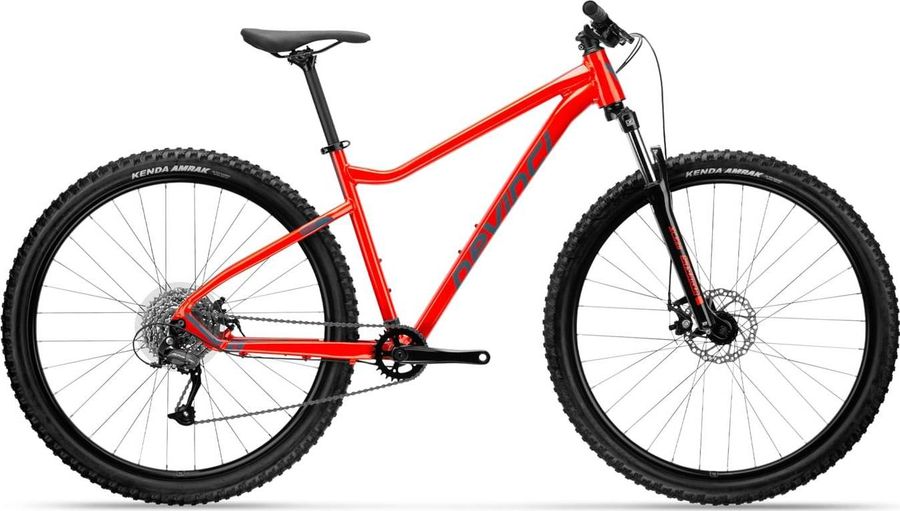

Devinci Riff Altus 8S 2021
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
About the Devinci Riff Altus 8S 2021
The Devinci Riff Altus 8S 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 8 gears (1x8).
Specifications
|
Grip
|
Kraton
|
|---|---|
|
Pedals
|
Wellgo M095
|
|
Steam
|
V2 Comp 31.8 | 0°
|
|---|---|
|
Saddle
|
Devinci
|
|
Headset
|
CH-6201-1 Zero Stack
|
|
Seatpost
|
Devinci 27.2mm
|
|
Handlebar
|
V2 Comp 31.8 Riserbar 15mm | 720mm
|
|
Discs
|
Stainless 160mm
|
|
Brakes
|
Tektro HD-M280
|
|
Chain
|
KMC Z
|
|---|---|
|
Crankset
|
Alloy 28T Narrow Wide
|
|
Shifter
|
Shimano M315
|
|
Chain guide
|
CD-04D
|
|
Cassette
|
Sunrace 8-speed
|
|
Rear derailleur
|
Shimano RD-M370-SGS
SGS
9s
|
|
- (Tension pulley) |
|
|
Frame
|
Aluminum Optimum G02
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
V2 Comp db | 24mm inner
|
|---|---|
|
Tires
|
Kenda Amrak 29x2.40
|
|
Spokes
|
Stainless 14G
|
|
Rear hub
|
Formula Disc | QR 10x135
|
|
Front hub
|
Formula Disc | QR 9x100
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
400,0
|
450,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
72,5º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
562,0
|
572,0
|
592,0
|
612,0
|
632,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
140,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1079,0
|
1089,0
|
1104,0
|
1118,0
|
1139,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
57,0
|
57,0
|
57,0
|
57,0
|
57,0
|
|
k
Stack height
|
608,0
|
608,0
|
618,0
|
627,0
|
646,0
|
|
l
Reach
|
375,0
|
385,0
|
396,0
|
407,0
|
421,0
|
|
m
Standover height
|
687,0
|
701,0
|
737,0
|
755,0
|
787,0
|
|
x
Bottom bracket height
|
317,5
|
317,5
|
317,5
|
317,5
|
317,5
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
