Devinci Riff Deore 10S 2021

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

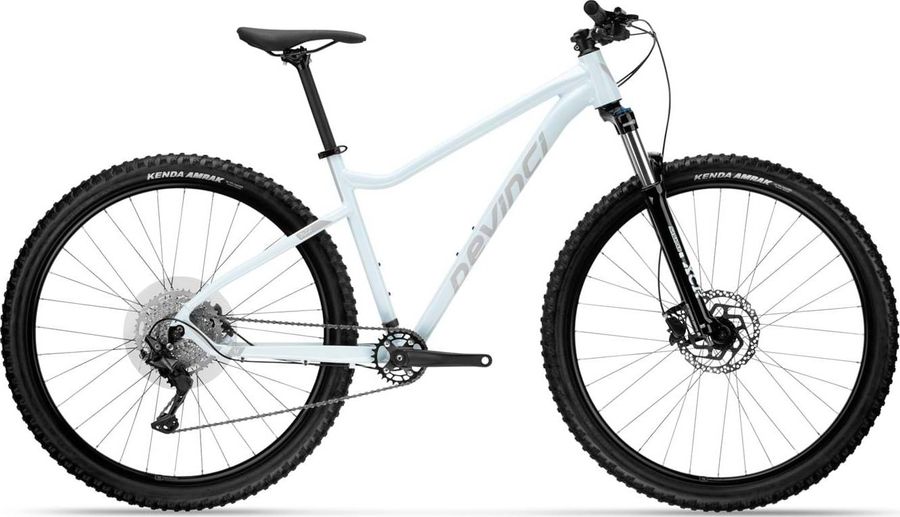

Devinci Riff Deore 10S 2021

About the Devinci Riff Deore 10S 2021

The Devinci Riff Deore 10S 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Devinci Riff Deore 10S 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kraton
Pedals
Wellgo M095
Components
Steam
V2 Comp 31.8 | 0°
Saddle
Devinci
Headset
CH-6201-1 Zero Stack
Seatpost
Devinci 27.2mm
Handlebar
V2 Comp 31.8 Riserbar 15mm | 720mm
Discs
Shimano RT26 160mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Alloy 2pcs 28T Narrow Wide
Shifter
Shimano Deore M4100 10s
Chain guide
CD-04D
Cassette
Sunrace 10-speed
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Frameset
Frame
Aluminum Optimum G02
Front suspension
SR Suntour XCR
Wheels
Rims
V2 Comp db | 24mm inner
Tires
Kenda Amrak 29x2.40
Spokes
Stainless 14G
Rear hub
Formula Disc | QR 10x135
Front hub
Formula Disc | QR 9x100

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
400,0
450,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
72,5º
72,0º
72,0º
c
Top tube length
562,0
572,0
592,0
612,0
632,0
d
Head tube length
100,0
100,0
110,0
120,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1079,0
1089,0
1104,0
1118,0
1139,0
i
Chainstay length
442,0
442,0
442,0
442,0
442,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
57,0
k
Stack height
608,0
608,0
618,0
627,0
646,0
l
Reach
375,0
385,0
396,0
407,0
421,0
m
Standover height
687,0
701,0
737,0
755,0
787,0
x
Bottom bracket height
317,5
317,5
317,5
317,5
317,5
y
Front center
-
-
-
-
-
