Devinci Spartan 27 NX 12S 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,68 kg
Front travel
170mm
Rear travel
165mm

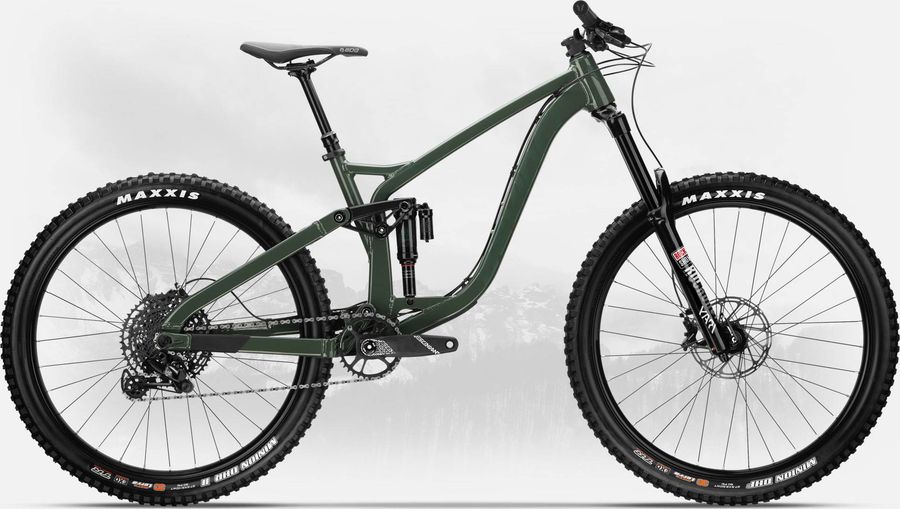

Devinci Spartan 27 NX 12S 2019

About the Devinci Spartan 27 NX 12S 2019

The Devinci Spartan 27 NX 12S 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,68 kg.

Features

The Devinci Spartan 27 NX 12S 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35 | 50mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
TranzX Dropper 31.6mm 1xLever SM:100 MD:125 LG:150 XL:170
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant Eagle 34T Boost 148
Shifter
SRAM NX Eagle 12s
Bottom bracket
SRAM DUB PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum Optimum G04 165mm, Handcrafted in Canada / Fabriqué à la main au Canada
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Formula TA 12x148 BOOST
Front hub
Formula TA 15x110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
390,0
390,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
76,1º
75,6º
76,0º
75,5º
75,9º
75,4º
75,7º
75,2º
c
Top tube length
586,0
588,0
610,0
612,0
633,0
635,0
657,0
659,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1182,0
1183,0
1206,0
1207,0
1230,0
1231,0
1254,0
1256,0
i
Chainstay length
435,5
437,0
435,5
437,0
435,5
437,0
435,5
437,0
j
Bottom bracket drop
13,0
18,0
13,0
18,0
13,0
18,0
13,0
18,0
k
Stack height
610,0
613,0
619,0
622,0
628,0
632,0
637,0
641,0
l
Reach
436,0
432,0
456,0
452,0
476,0
472,0
496,0
492,0
m
Standover height
747,0
743,0
750,0
745,0
759,0
754,0
774,0
769,0
x
Bottom bracket height
342,5
337,0
342,5
337,0
342,5
337,0
342,5
337,0
y
Front center
-
-
-
-
-
-
-
-
