Devinci Spartan 29 NX/GX 12s 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,68 kg
Front travel
170mm
Rear travel
165mm

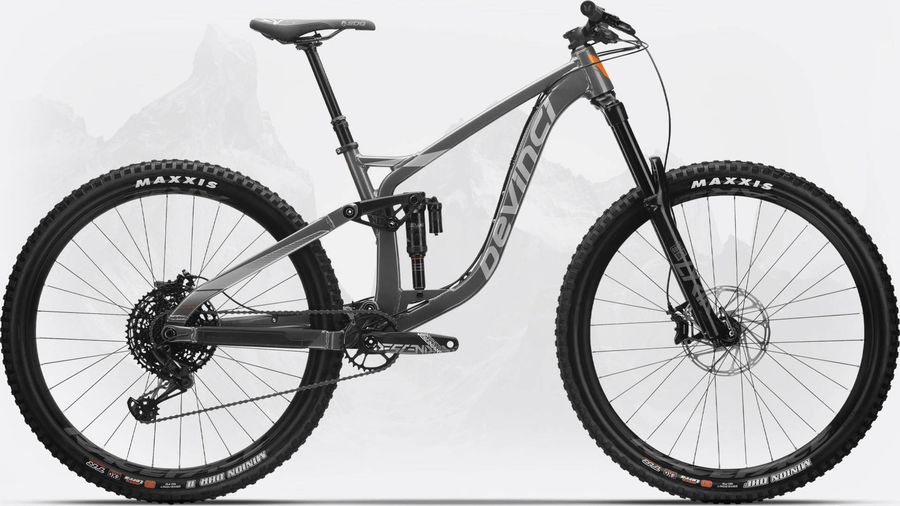

Devinci Spartan 29 NX/GX 12s 2020

About the Devinci Spartan 29 NX/GX 12s 2020

The Devinci Spartan 29 NX/GX 12s 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,68 kg.

Features

The Devinci Spartan 29 NX/GX 12s 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35 | 50mm
Saddle
SDG Radar
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
TranzX Dropper 31.6mm 1xLever
Handlebar
Race Face Aeffect R 35 Riserbar 20mm | 780mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Truvativ Descendant Eagle 32T SuperBoost 157
Shifter
SRAM NX Eagle 12s
Bottom bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum Optimum G04 165mm, Handcrafted in Canada / Fabriqué à la main au Canada
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
RaceFace AR35 Offset 29er | 35mm inner
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Spokes
Stainless 14G w/Nylok
Rear hub
Novatec DH82SB-S5S SB157x12
Front hub
Novatec Disc D791SB-B15 TA 15x110

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
400,0
400,0
425,0
425,0
460,0
460,0
495,0
495,0
b
Seat tube angle
77,6º
77,1º
77,5º
77,0º
77,4º
76,9º
77,2º
76,7º
c
Top tube length
565,0
568,0
589,0
592,0
612,0
615,0
636,0
639,0
d
Head tube length
100,0
100,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
65,6º
65,0º
65,6º
65,0º
65,6º
65,0º
65,6º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1183,0
1184,0
1207,0
1208,0
1231,0
1232,0
1256,0
1257,0
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
j
Bottom bracket drop
22,0
31,0
22,0
31,0
22,0
31,0
22,0
31,0
k
Stack height
631,0
626,0
640,0
635,0
649,0
644,0
658,0
653,0
l
Reach
433,0
425,0
453,0
445,0
473,0
465,0
493,0
485,0
m
Standover height
747,0
744,0
747,0
744,0
760,0
757,0
777,0
774,0
x
Bottom bracket height
352,0
343,0
352,0
343,0
352,0
343,0
352,0
343,0
y
Front center
-
-
-
-
-
-
-
-
