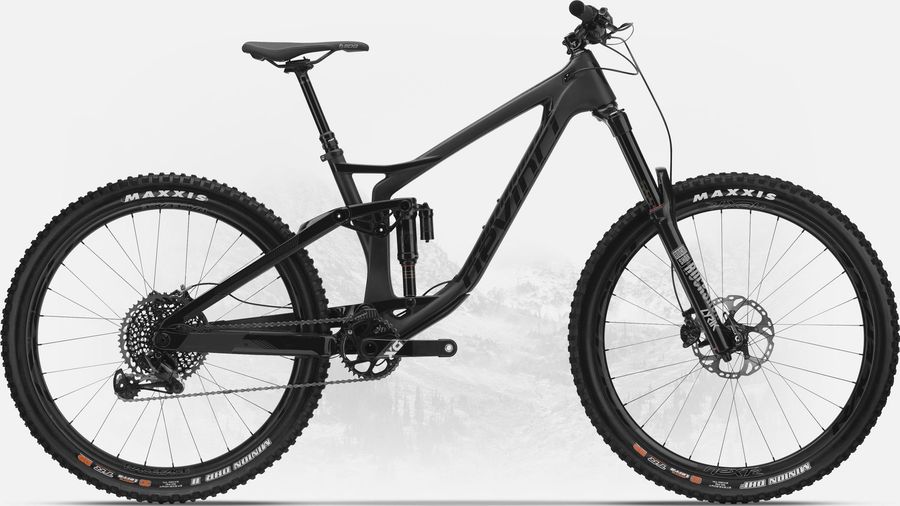

Devinci Spartan Carbon X01 Eagle | NEXT-R 32 2018

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,76 kg
Front travel
170mm
Rear travel
165mm
Devinci Spartan Carbon X01 Eagle | NEXT-R 32 2018

About the Devinci Spartan Carbon X01 Eagle | NEXT-R 32 2018

The Devinci Spartan Carbon X01 Eagle | NEXT-R 32 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,76 kg.

Features

The Devinci Spartan Carbon X01 Eagle | NEXT-R 32 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine 35*50mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
RockShox Reverb Stealth 125mm 31.6mm 1x Remote
Handlebar
Race Face Next R 35 20mm Rise 800mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X01 Eagle 34T Boost 148
Shifter
SRAM X01 Eagle 12s
Chain guide
E13 TRS Race SL Carbon ISCG05
Bottom bracket
SRAM BB92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon DMC-G 165mm
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RC3
Wheels
Rims
RaceFace Next-R 32 27.5 Carbon Boost110x15
Tires
Maxxis Minion DHF 27.5x2.5" 3C Compound, TR DD

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
390,0
390,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
74,9º
74,5º
74,9º
74,5º
74,9º
74,5º
74,9º
74,5º
c
Top tube length
586,0
588,0
610,0
612,0
633,0
635,0
657,0
659,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
135,0
135,0
e
Head tube angle
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1182,0
1183,0
1206,0
1207,0
1230,0
1231,0
1254,0
1256,0
i
Chainstay length
435,5
437,0
435,5
437,0
435,5
437,0
435,5
437,0
j
Bottom bracket drop
13,0
18,0
13,0
18,0
13,0
18,0
13,0
18,0
k
Stack height
610,0
613,0
619,0
622,0
628,0
632,0
637,0
641,0
l
Reach
436,0
432,0
456,0
452,0
476,0
472,0
496,0
492,0
m
Standover height
737,0
731,0
747,0
742,0
751,0
746,0
767,0
762,0
x
Bottom bracket height
342,5
337,0
342,5
337,0
342,5
337,0
342,5
337,0
y
Front center
-
-
-
-
-
-
-
-
