Devinci Spartan NX 2018

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,75 kg
Front travel
170mm
Rear travel
165mm

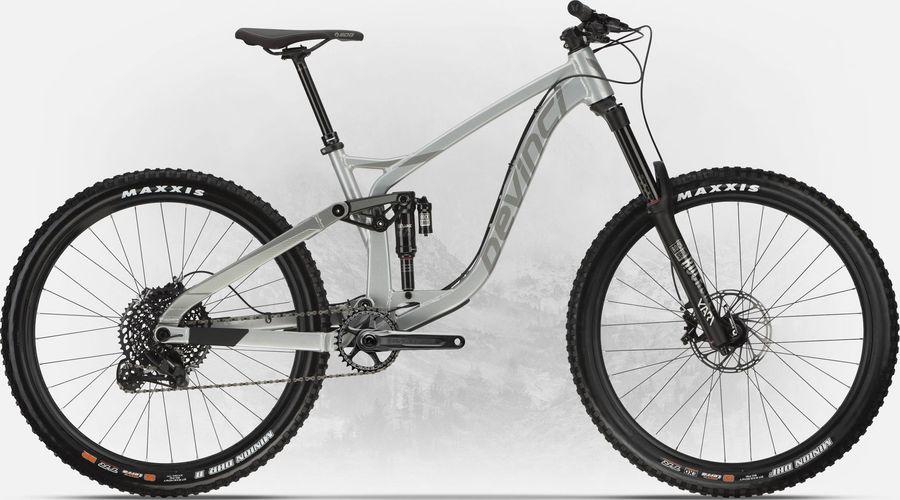

Devinci Spartan NX 2018

About the Devinci Spartan NX 2018

The Devinci Spartan NX 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 15,75 kg.

Features

The Devinci Spartan NX 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35mm*45mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
FSA ajustable 125mm 31.6mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
RaceFace Aeffect DM30T
Shifter
SRAM NX 11s
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Aluminum Optimum G04 165mm
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
V2 Comp Wide db, 36mm inner
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Boost148
Front hub
Formula TA 110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
390,0
390,0
420,0
420,0
455,0
455,0
495,0
495,0
b
Seat tube angle
74,9º
74,5º
74,9º
74,5º
74,9º
74,5º
74,9º
74,5º
c
Top tube length
586,0
588,0
610,0
612,0
633,0
635,0
657,0
659,0
d
Head tube length
105,0
105,0
115,0
115,0
125,0
125,0
140,0
140,0
e
Head tube angle
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
65,4º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1182,0
1183,0
1206,0
1207,0
1230,0
1231,0
1254,0
1256,0
i
Chainstay length
435,5
437,0
435,5
437,0
435,5
437,0
435,5
437,0
j
Bottom bracket drop
13,0
18,0
13,0
18,0
13,0
18,0
13,0
18,0
k
Stack height
610,0
613,0
619,0
622,0
628,0
632,0
637,0
641,0
l
Reach
436,0
432,0
456,0
452,0
476,0
472,0
496,0
492,0
m
Standover height
747,0
743,0
750,0
745,0
759,0
754,0
774,0
769,0
x
Bottom bracket height
342,5
337,0
342,5
337,0
342,5
337,0
342,5
337,0
y
Front center
-
-
-
-
-
-
-
-
