Devinci Troy 27 GX 12S 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,86 kg
Front travel
150mm
Rear travel
140mm

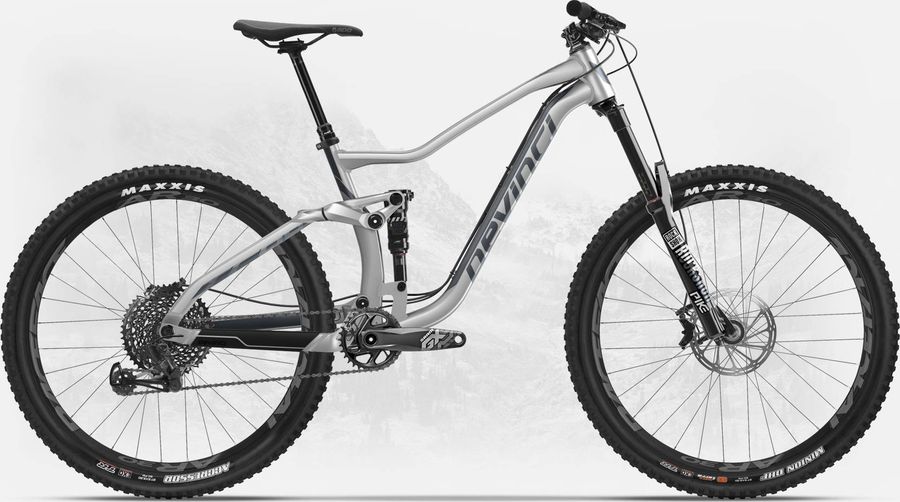

Devinci Troy 27 GX 12S 2019

About the Devinci Troy 27 GX 12S 2019

The Devinci Troy 27 GX 12S 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,86 kg.

Features

The Devinci Troy 27 GX 12S 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35 | 50mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
TranzX Dropper 31.6mm 1xLever SM:100 MD:125 LG:150 XL:170
Handlebar
Race Face Aeffect R 35 Riserbar 20mm | 780mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM GX Eagle 34T SuperBoost 157
Shifter
SRAM GX 12s
Bottom bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum Optimum G04 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
RaceFace AR35 Offset 27.5" | 35mm inner
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
Novatec XDH42SB/A SB157x12
Front hub
Novatec D791SB-B15 TA 15x110

Geometry

Size XS High XS Low SM High MD High SM Low MD Low LG High LG Low
a
Seat tube length
385,0
385,0
400,0
400,0
400,0
425,0
460,0
460,0
b
Seat tube angle
76,2º
75,7º
76,1º
76,0º
75,6º
75,5º
75,9º
75,4º
c
Top tube length
554,0
556,0
578,0
578,0
580,0
603,0
625,0
627,0
d
Head tube length
95,0
95,0
105,0
105,0
105,0
115,0
125,0
125,0
e
Head tube angle
66,5º
66,0º
66,5º
66,5º
66,0º
66,0º
66,5º
66,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1133,0
1134,0
1158,0
1158,0
1159,0
1183,0
1206,0
1207,0
i
Chainstay length
427,0
428,0
427,0
427,0
428,0
428,0
427,0
428,0
j
Bottom bracket drop
10,0
16,0
10,0
10,0
16,0
16,0
10,0
16,0
k
Stack height
583,0
586,0
592,0
592,0
595,0
604,0
610,0
613,0
l
Reach
412,0
407,0
432,0
432,0
427,0
447,0
472,0
467,0
m
Standover height
706,0
701,0
720,0
720,0
715,0
735,0
767,0
762,0
x
Bottom bracket height
345,0
339,5
345,0
345,0
339,5
339,5
345,0
339,5
y
Front center
-
-
-
-
-
-
-
-
