BikeWise

Devinci Troy Carbon 27 GX 12S LTD 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,78 kg
Front travel
160mm
Rear travel
140mm

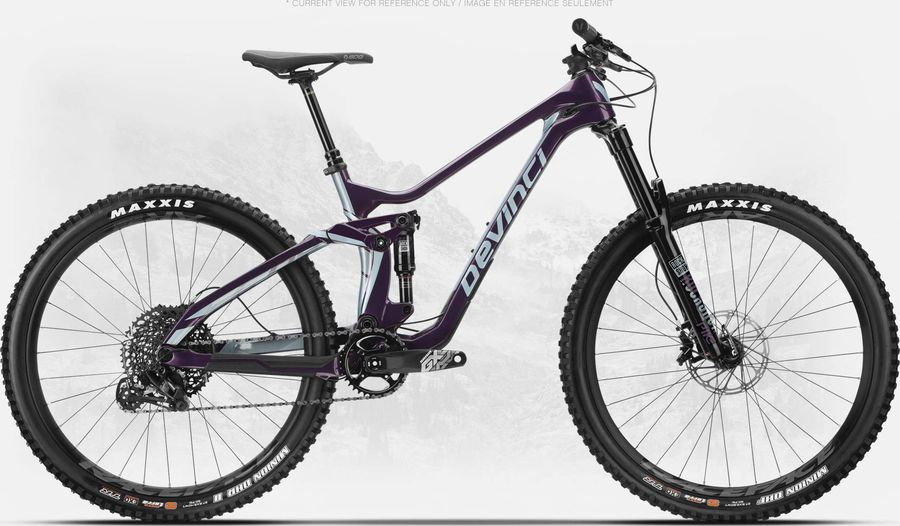

Devinci Troy Carbon 27 GX 12S LTD 2019

About the Devinci Troy Carbon 27 GX 12S LTD 2019

The Devinci Troy Carbon 27 GX 12S LTD 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,78 kg.

Features

The Devinci Troy Carbon 27 GX 12S LTD 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Turbine R 35 | 50mm
Saddle
SDG Fly Mtn
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
RockShox Reverb 31.6mm 1xLever SM:100 MD:125 LG:150 XL:170
Handlebar
Race Face Next R 35 Riserbar 20mm | 800mm
Discs
SRAM Centerline 180mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM GX Eagle 34T SuperBoost 157
Shifter
SRAM GX 12s
Bottom bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
RaceFace ARC35 27.5 35mm inner
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Spokes
Stainless 14G w/Nylok
Rear hub
RaceFace Vault SB157x12 XD
Front hub
RaceFace Vault TA 15x110

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low
a
Seat tube length
380,0
380,0
400,0
400,0
440,0
440,0
460,0
460,0
b
Seat tube angle
75,6º
75,0º
75,5º
74,9º
75,4º
74,8º
75,3º
74,7º
c
Top tube length
552,0
554,0
576,0
577,0
599,0
601,0
622,0
625,0
d
Head tube length
95,0
95,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1124,0
1126,0
1148,0
1150,0
1172,0
1174,0
1196,0
1198,0
i
Chainstay length
422,0
423,0
422,0
423,0
422,0
423,0
422,0
423,0
j
Bottom bracket drop
5,0
11,0
5,0
11,0
5,0
11,0
5,0
11,0
k
Stack height
583,0
587,0
592,0
596,0
601,0
605,0
610,0
614,0
l
Reach
401,0
396,0
421,0
416,0
442,0
436,0
461,0
456,0
m
Standover height
712,0
707,0
717,0
711,0
731,0
725,0
752,0
746,0
x
Bottom bracket height
350,0
344,0
350,0
344,0
350,0
344,0
350,0
344,0
y
Front center
-
-
-
-
-
-
-
-
