Devinci Troy Carbon/Alu 29 NX/GX 12S 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,02 kg
Front travel
150mm
Rear travel
140mm

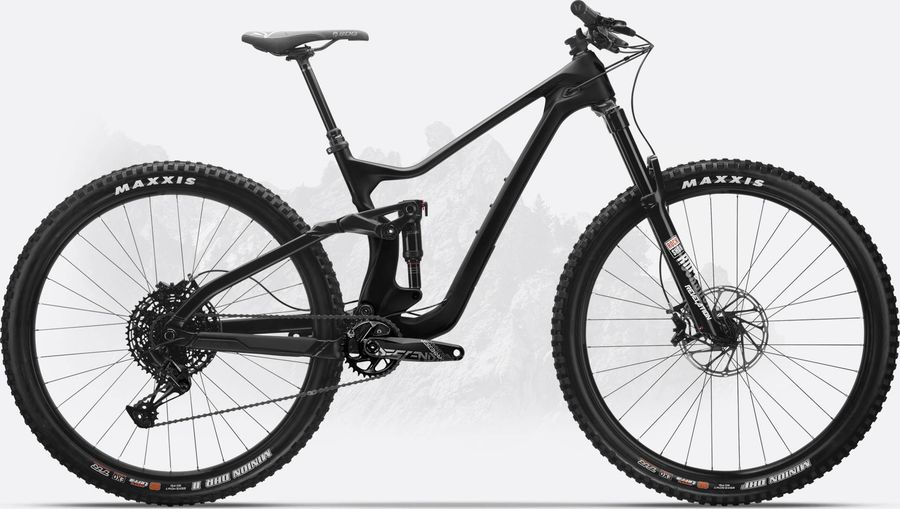

Devinci Troy Carbon/Alu 29 NX/GX 12S 2020

About the Devinci Troy Carbon/Alu 29 NX/GX 12S 2020

The Devinci Troy Carbon/Alu 29 NX/GX 12S 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,02 kg.

Features

The Devinci Troy Carbon/Alu 29 NX/GX 12S 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
V2 Pro 35 | 50mm
Saddle
SDG Radar
Headset
FSA Orbit 1.5 Zero Stack
Seatpost
RockShox Reverb 31.6 1xLever
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant Eagle 32T SuperBoost 157
Shifter
SRAM NX Eagle 12s
Bottom bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Spokes
Stainless 14G w/Nylok
Rear hub
Novatec DH82SB-S5S SB157x12
Front hub
Novatec Disc D791SB-B15 TA 15x110

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
400,0
400,0
440,0
440,0
460,0
460,0
495,0
495,0
b
Seat tube angle
76,2º
75,7º
76,1º
75,6º
75,9º
75,4º
75,8º
75,3º
c
Top tube length
581,0
583,0
604,0
606,0
628,0
630,0
652,0
654,0
d
Head tube length
95,0
95,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1167,0
1167,0
1191,0
1191,0
1215,0
1215,0
1242,0
1242,0
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
j
Bottom bracket drop
28,0
35,0
28,0
35,0
28,0
35,0
28,0
35,0
k
Stack height
613,0
616,0
622,0
625,0
631,0
634,0
640,0
643,0
l
Reach
430,0
425,0
450,0
445,0
470,0
465,0
490,0
485,0
m
Standover height
715,0
710,0
729,0
724,0
751,0
746,0
765,0
760,0
x
Bottom bracket height
346,0
339,5
346,0
339,5
346,0
339,5
346,0
339,5
y
Front center
-
-
-
-
-
-
-
-
