Devinci Wilson 29 GX DH 7s 2020

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,58 kg
Front travel
200mm

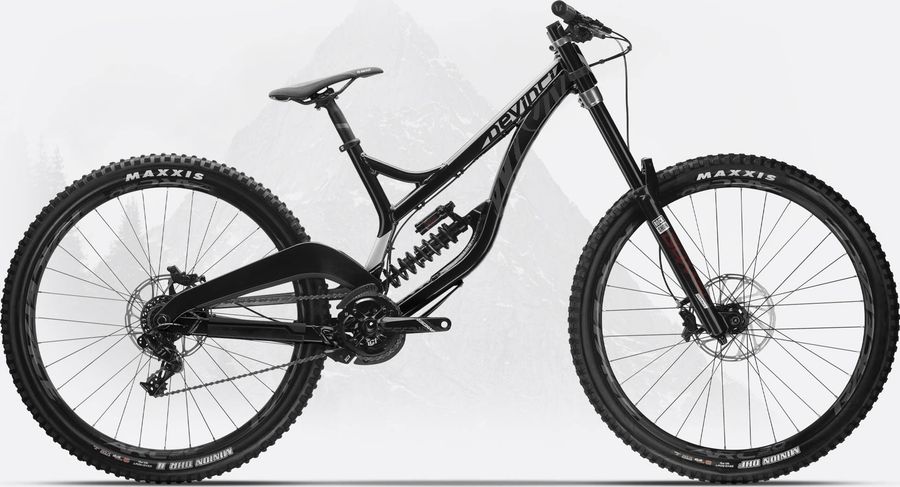

Devinci Wilson 29 GX DH 7s 2020

About the Devinci Wilson 29 GX DH 7s 2020

The Devinci Wilson 29 GX DH 7s 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 17,58 kg.

Features

The Devinci Wilson 29 GX DH 7s 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Chester 35mm | 50mm Direct Mount
Saddle
Saddle SDG Fly RL CrMo rail
Headset
FSA Orbit 1.5R Zero Stack
Seatpost
V2 Pro 31.6mm
Handlebar
Race Face Atlas 35 Riserbar 35mm | 820mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 36T
Shifter
SRAM GX DH 7s
Chain guide
E13 LG1+ with Taco Bash
Bottom bracket
SRAM DUB 83mm Threaded
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Rear suspension
RockShox Super Deluxe Coil Ultimate DH 441 g
Body eyelet
Bearing, No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-ULDH-A2
Name
Super Deluxe Coil Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard
Weight based on
W/O coil spring, 250x67.5 MM tune, standard/standard
Weight
441
Front suspension
RockShox Boxxer Select DebonAir 2558 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-SEL-C2
Name
BoXXer Select
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2558
Wheel size
27.5", 29"
Wheels
Rims
RaceFace ARC30 HeavyDuty 29er | 30mm inner
Tires
Maxxis Minion DHF 29x2.5WT 3C Compound, TR,DH casing
Spokes
Stainless 14G w/Nylok
Rear hub
Novatec DH82SB-S5S SB157x12
Front hub
Novatec XD641SB-B20 TA 20x110

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
400,0
400,0
415,0
415,0
430,0
430,0
445,0
445,0
b
Seat tube angle
77,3º
76,8º
77,3º
76,8º
77,3º
76,8º
77,3º
76,8º
c
Top tube length
568,0
569,0
588,0
589,0
613,0
614,0
633,0
634,0
d
Head tube length
100,0
100,0
100,0
100,0
110,0
110,0
110,0
110,0
e
Head tube angle
62,5º
62,0º
62,5º
62,0º
62,5º
62,0º
62,5º
62,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1265,0
1266,0
1285,0
1286,0
1309,0
1310,0
1329,0
1330,0
i
Chainstay length
458,0
460,0
458,0
460,0
458,0
460,0
458,0
460,0
j
Bottom bracket drop
14,0
21,0
14,0
21,0
14,0
21,0
14,0
21,0
k
Stack height
610,0
614,0
610,0
614,0
619,0
623,0
619,0
623,0
l
Reach
430,0
425,0
450,0
445,0
470,0
465,0
490,0
485,0
m
Standover height
725,0
720,0
730,0
725,0
735,0
730,0
740,0
735,0
x
Bottom bracket height
360,0
353,0
360,0
353,0
360,0
353,0
360,0
353,0
y
Front center
-
-
-
-
-
-
-
-
