Devinci Wilson 29 X01 DH 7s 2020

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
16,83 kg
Front travel
200mm

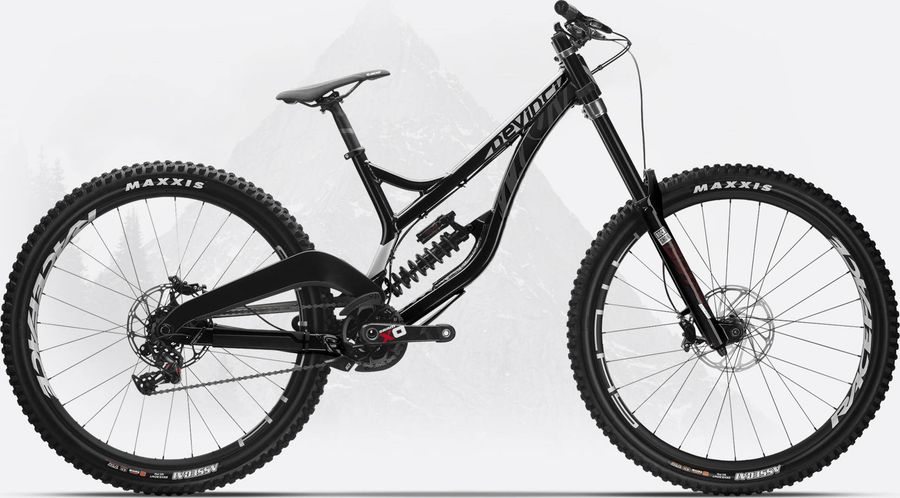

Devinci Wilson 29 X01 DH 7s 2020

About the Devinci Wilson 29 X01 DH 7s 2020

The Devinci Wilson 29 X01 DH 7s 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 16,83 kg.

Features

The Devinci Wilson 29 X01 DH 7s 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Atlas 35mm | 50mm Direct Mount
Saddle
Saddle SDG Fly RL CrMo rail
Headset
FSA Orbit 1.5R Zero Stack
Seatpost
V2 Pro 31.6mm
Handlebar
Race Face Sixc 35 Riserbar 35mm | 820mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XO1 DUB 36T
Shifter
SRAM XO1 DH 7s
Chain guide
E13 LG1+ with Taco Bash
Bottom bracket
SRAM DUB 83mm Threaded
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
SRAM XG-795 7s 136 g
Cog finish cassete
Black
Cog sizes
10-24t:10,12,14,16,18,21,24
Gearing
10-24t
Model
CS-XG-795-A1
Name
XG-795 MINI BLOCK™ Cassette
Speed
7s
Technology cassete
XG
Weight
136
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Rear suspension
RockShox Super Deluxe Coil Ultimate DH 441 g
Body eyelet
Bearing, No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-ULDH-A2
Name
Super Deluxe Coil Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard
Weight based on
W/O coil spring, 250x67.5 MM tune, standard/standard
Weight
441
Front suspension
RockShox Boxxer Ultimate DebonAir 2565 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-ULT-C2
Name
BoXXer Ultimate
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2565
Wheel size
27.5", 29"
Wheels
Rims
RaceFace Atlas 30 29er Boost110x20mm | 30mm inner
Tires
Maxxis Minion DHF 29x2.5WT 3C Compound, TR,DH casing

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
400,0
400,0
415,0
415,0
430,0
430,0
445,0
445,0
b
Seat tube angle
77,3º
76,8º
77,3º
76,8º
77,3º
76,8º
77,3º
76,8º
c
Top tube length
568,0
569,0
588,0
589,0
613,0
614,0
633,0
634,0
d
Head tube length
100,0
100,0
100,0
100,0
110,0
110,0
110,0
110,0
e
Head tube angle
62,5º
62,0º
62,5º
62,0º
62,5º
62,0º
62,5º
62,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1265,0
1266,0
1285,0
1286,0
1309,0
1310,0
1329,0
1330,0
i
Chainstay length
458,0
460,0
458,0
460,0
458,0
460,0
458,0
460,0
j
Bottom bracket drop
14,0
21,0
14,0
21,0
14,0
21,0
14,0
21,0
k
Stack height
610,0
614,0
610,0
614,0
619,0
623,0
619,0
623,0
l
Reach
430,0
425,0
450,0
445,0
470,0
465,0
490,0
485,0
m
Standover height
725,0
720,0
730,0
725,0
735,0
730,0
740,0
735,0
x
Bottom bracket height
360,0
353,0
360,0
353,0
360,0
353,0
360,0
353,0
y
Front center
-
-
-
-
-
-
-
-
