Devinci Wilson Carbon GX 10s 2018

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
204mm

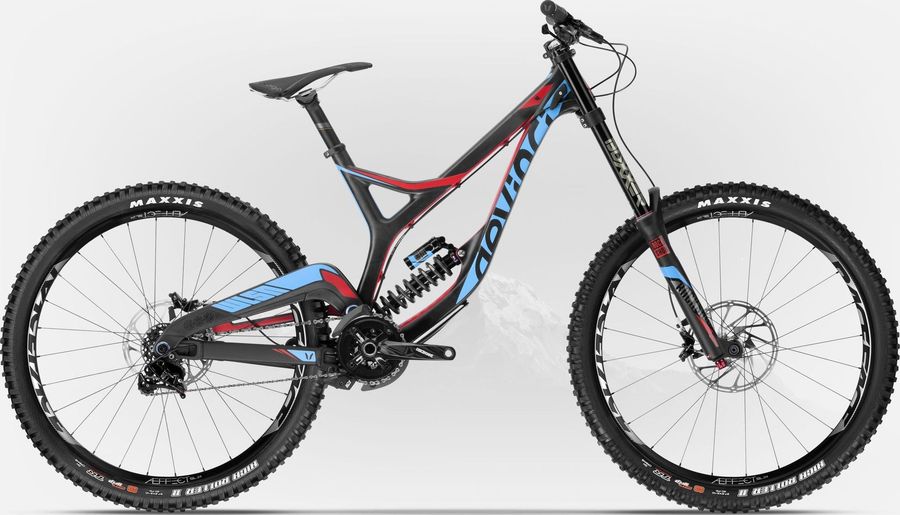

Devinci Wilson Carbon GX 10s 2018

About the Devinci Wilson Carbon GX 10s 2018

The Devinci Wilson Carbon GX 10s 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Devinci Wilson Carbon GX 10s 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Devinci Performance w/lock-on
Components
Steam
Race Face Chester 35mm Direct Mount
Saddle
Saddle SDG Fly RL
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seatpost
V2 Comp 31.6mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Discs
SRAM Centerline 200mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Truvativ Hussefelt 1.0 Howitzer 36T
Cassette
Shimano 10s 11-28T
Shifter
SRAM GX 10s
Chain guide
E13 LG1+ with Taco Bash
Bottom bracket
Truvativ Howitzer Team
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Rear derailleur
SRAM GX 10-speed
Frameset
Frame
Carbon DMC-G 204mm
Rear suspension
RockShox Vivid R2C 468 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
200x57, 216x63, 222x70, 240x76, 267x89
Model
RS-VIVC-R2C-B3
Name
Vivid R2C
Shaft eyelet
Standard
Weight based on
216x63, no coil, no hardware
Weight
468
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Rims
RaceFace AR30, 30mm inner
Tires
Maxxis HighRoller II 27.5x2.4" 3C Compound 2Ply
Spokes
Stainless 14G w/Nylok
Rear hub
Formula Disc sealed TA 12x150mm
Front hub
Formula Disc sealed TA 20mm

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
445,0
457,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
-
-
-
-
d
Head tube length
100,0
100,0
100,0
100,0
e
Head tube angle
63,2º
63,2º
63,2º
63,2º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1183,0
1203,0
1228,0
1243,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
-1,0
-1,0
-1,0
-1,0
k
Stack height
600,0
600,0
600,0
600,0
l
Reach
397,0
417,0
442,0
457,0
m
Standover height
736,0
736,0
736,0
736,0
x
Bottom bracket height
356,0
356,0
356,0
356,0
y
Front center
-
-
-
-
