Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

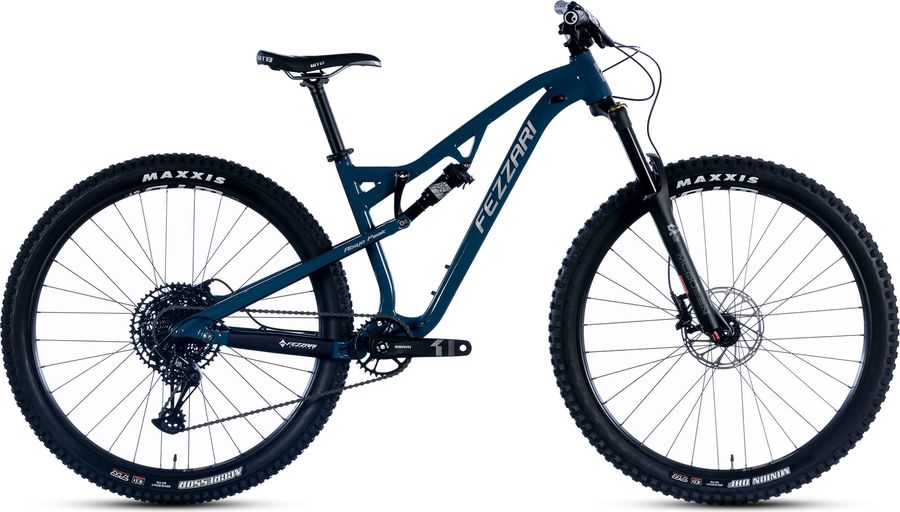

About the Fezzari Abajo Peak 2022
The Fezzari Abajo Peak 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include boost 110 , boost 148, and e-thru axle.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
|
|---|---|
|
Saddle
|
Selle Italia Model X
|
|
Headset
|
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
|
|
Seatpost
|
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari Racing Design Alloy, 35mm 780mm,customized sizing through 23-Point Custom Setup
|
|
Brake lever
|
SRAM Level Alloy
|
|
Brakes
|
SRAM Level
Hydraulic
430 g
|
|
|
|
|
Crankset
|
SRAM 1000 Eagle DUB
|
|---|---|
|
Shifter
|
SRAM NX Eagle 1x12
|
|
Bottom bracket
|
SRAM DUB for English Thread
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 NX Eagle
|
|
Frame
|
Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
|
|---|---|
|
Front suspension
|
X-Fusion McQueen RCP
|
|
Rear suspension
|
X-Fusion O2 RL
|
|
Rims
|
WTB I29 TCS 2.0 29er, Tubeless Ready, 32 Hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
|
|
Spokes
|
1.8mm (15g) black stainless steel, brass nipples
|
|
Rear hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
|
|
Front hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
457,0
|
495,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
561,0
|
588,0
|
616,0
|
645,0
|
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
|
f
Rake
|
41,0
|
41,0
|
41,0
|
42,0
|
|
g
Trail
|
115,0
|
115,0
|
115,0
|
114,0
|
|
h
Wheelbase
|
1135,0
|
1162,0
|
1192,0
|
1222,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
22,0
|
22,0
|
22,0
|
22,0
|
|
k
Stack height
|
605,0
|
610,0
|
614,0
|
623,0
|
|
l
Reach
|
410,0
|
435,0
|
463,0
|
489,0
|
|
m
Standover height
|
742,0
|
747,0
|
765,0
|
772,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
704,0
|
731,0
|
761,0
|
791,0
|
