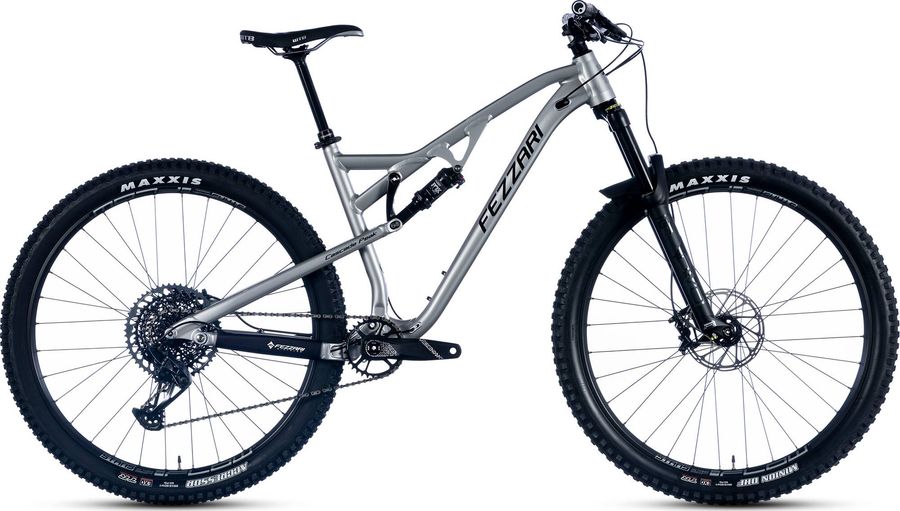

Fezzari Cascade Peak 2020

MTB Trail

Groupset

SRAM GX Eagle

Frame material

Alloy

Wheel size

29"

Suspension type

Full suspension

Front travel

140mm

Rear travel

130mm

About the Fezzari Cascade Peak 2020

The Fezzari Cascade Peak 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Cascade Peak 2020 has 6 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Pedals	Available Separately

Components
Steam	Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Saddle	WTB Volt Comp
Headset	FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seatpost	X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Handlebar	Fezzari FRD Charger35, alloy, 35mm clamp, 760mm wide, 15mm riser, 9 degree bend
Brake lever	SRAM G2 R
Brakes	SRAM G2 R Hydraulic 393 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-G2-R-A1 Name G2 R Orientation Front, Rear Pad type disc Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 393

Drivetrain
Crankset	Truvativ Descendant DUB 6K Aluminum Eagle Crankset
Shifter	SRAM GX Eagle Trigger 12-speed
Bottom bracket	SRAM DUB, English Thread
Chain	SRAM GX Eagle 244 g
Chain connector PowerLock Chain length links 126 links Color inner link Black Color outer link Silver Compat speed 12s-Eagle Inner link finish Black Oxide Model CN-EAGL-GX-A1 Name GX Eagle Chain Outer link finish Nickel Pin variant Solid Pin Weight based on 114 links Weight 244
Cassette	SRAM XG-1275 Eagle 12s
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1275-B1 Name XG-1275 Eagle Cassette Speed 12s Technology cassete XG
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
Rear suspension	Fox Float DPS Performance EVOL
Front suspension	DVO Diamond D1

Wheels
Rims	Stans Flow 29er S1, Tubeless Ready, 32 hole or WTB i35 27.5+
Tires	Maxxis Minion DHF 29x2.5WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60TPI
Spokes	1.8mm (15g) black stainless, brass nipples
Rear hub	Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver
Front hub	Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver
